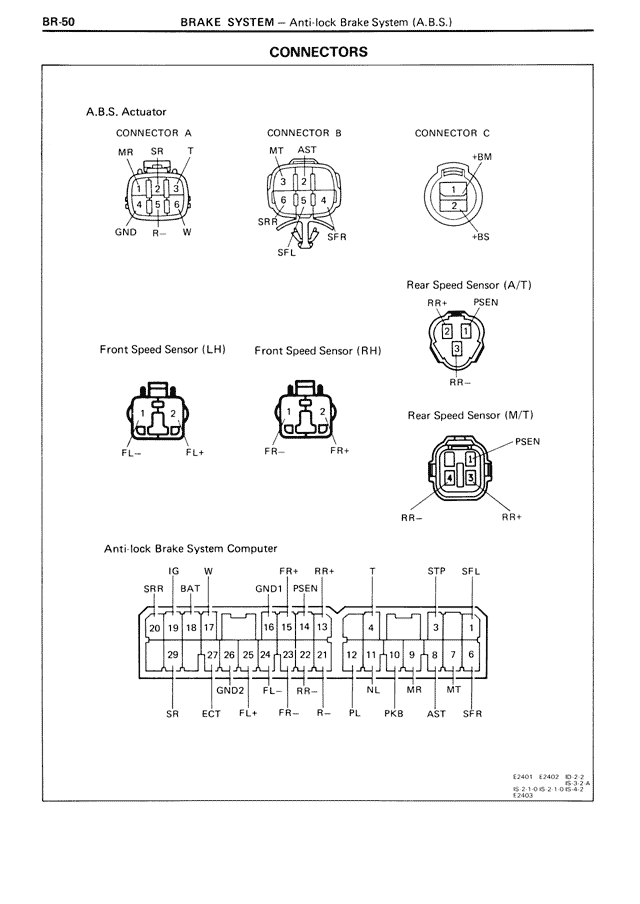

BR-50
BRAKE SYSTEM — Anti-lock Brake System (A.B.S.)
CONNECTORS
A.B.S. Actuator
CONNECTOR A
MR SR T
1 1 6
2 5 4 3
GND R- W
CONNECTOR B
MT AST
3 1 2
6 5 4
SRR SFR
SFL
CONNECTOR C
BM
1
2
BS
Rear Speed Sensor (A/T)
RR+ PSEN
1
2
RR-
Front Speed Sensor (LH) Front Speed Sensor (RH)
1 2 1 2
FL- FL+ FR- FR+
Rear Speed Sensor (M/T)
PSEN
1 2
3 4
RR- RR+
Anti-lock Brake System Computer
IG W FR+ RR+ T STP SFL
SRR BAT GND1 PSEN
20 19 18 17 16 15 14 13 4 3 1
29 27 26 25 24 23 22 21 12 11 10 9 8 7 6
SR ECT GND2 FL- RR- NL MR MT
FL+ FR- R- PL PKB AST SFR
E2401 E2402 D-2-2
D-2-1
92.2-1 09.2-1 89.2-2
T2403
