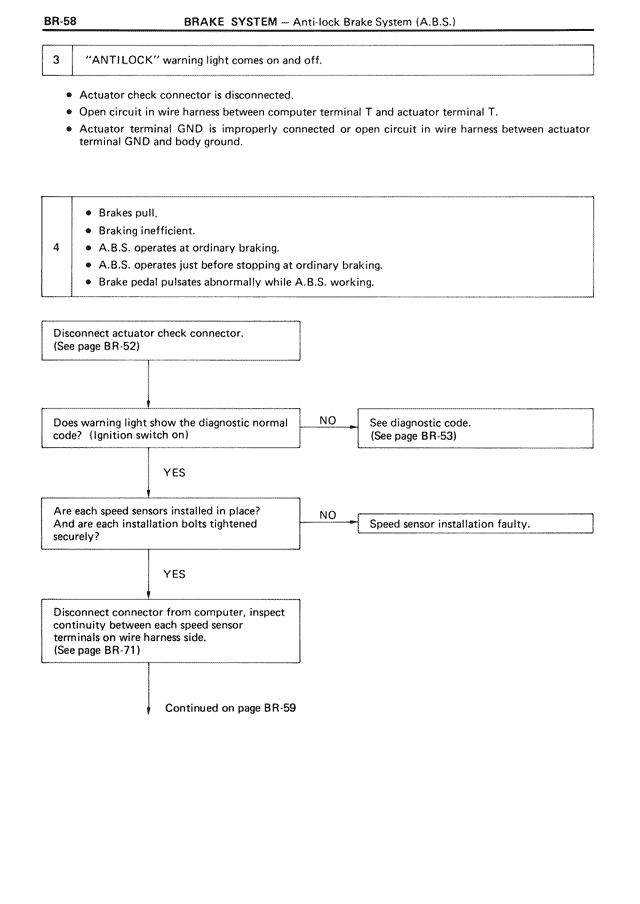

BR-58
BRAKE SYSTEM — Anti-lock Brake System (A.B.S.)
3
"ANTILOCK" warning light comes on and off.
• Actuator check connector is disconnected.
• Open circuit in wire harness between computer terminal T and actuator terminal T.
• Actuator terminal GND is improperly connected or open circuit in wire harness between actuator terminal GND and body ground.
4
• Brakes pull.
• Braking inefficient.
• A.B.S. operates at ordinary braking.
• A.B.S. operates just before stopping at ordinary braking.
• Brake pedal pulsates abnormally while A.B.S. working.
Disconnect actuator check connector.
(See page BR-52)
Does warning light show the diagnostic normal code? (Ignition switch on)
NO → See diagnostic code. (See page BR-53)
YES ↓
Are each speed sensors installed in place? And are each installation bolts tightened securely?
NO → Speed sensor installation faulty.
YES ↓
Disconnect connector from computer, inspect continuity between each speed sensor terminals on wire harness side. (See page BR-71)
↓ Continued on page BR-59
