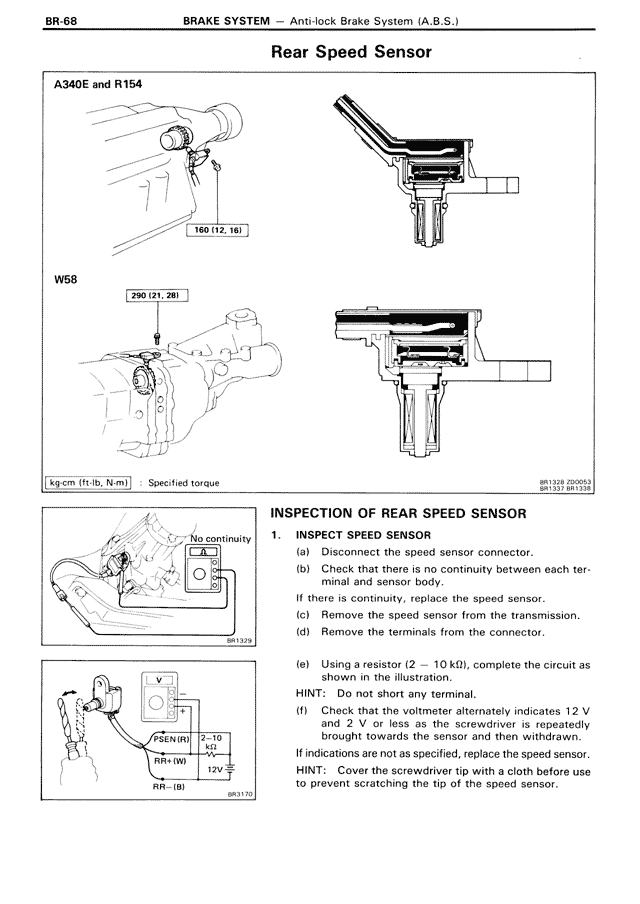

Rear Speed Sensor
A340E and R154
160 (12, 18)
W58
290 (21, 28)
kg-cm (ft-lb, N-m) : Specified torque
BR1328 Z00063
Oct., '90
INSPECTION OF REAR SPEED SENSOR
No continuity
BR1329
V
Ω
RR
RR—LH (W)
2—10
kΩ
12V
RR—(B)
BR1370
1. INSPECT SPEED SENSOR
(a) Disconnect the speed sensor connector.
(b) Check that there is no continuity between each terminal and sensor body.
If there is continuity, replace the speed sensor.
(c) Remove the speed sensor from the transmission.
(d) Remove the terminals from the connector.
(e) Using a resistor (2 — 10 kΩ), complete the circuit as shown in the illustration.
HINT: Do not short any terminal.
(f) Check that the voltmeter alternately indicates 12 V and 2 V or less as the screwdriver is repeatedly brought towards the sensor and then withdrawn.
If indications are not as specified, replace the speed sensor.
HINT: Cover the screwdriver tip with a cloth before use to prevent scratching the tip of the speed sensor.
