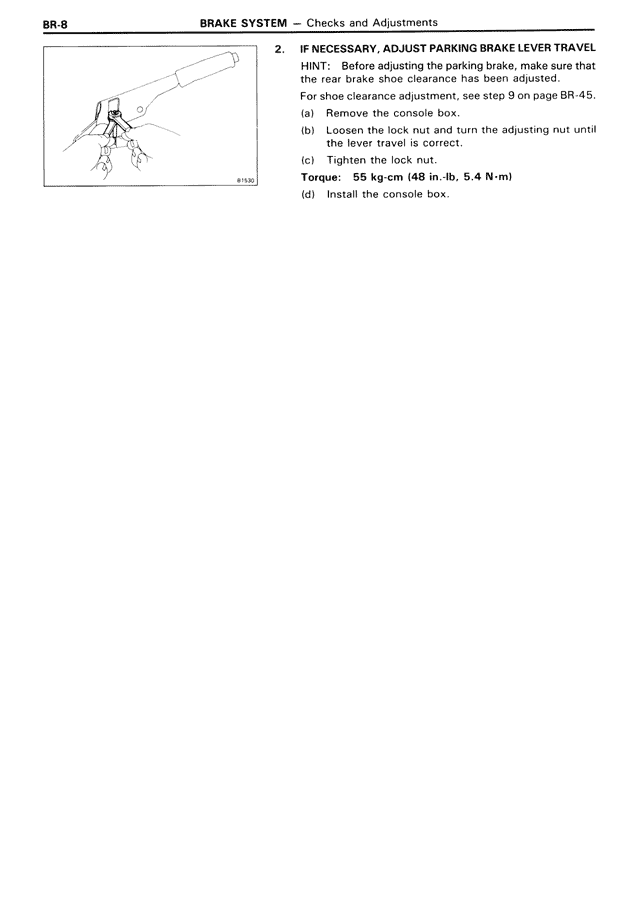

BR-8
BRAKE SYSTEM — Checks and Adjustments
2. IF NECESSARY, ADJUST PARKING BRAKE LEVER TRAVEL
HINT: Before adjusting the parking brake, make sure that the rear brake shoe clearance has been adjusted. For shoe clearance adjustment, see step 9 on page BR-45.
(a) Remove the console box.
(b) Loosen the lock nut and turn the adjusting nut until the lever travel is correct.
(c) Tighten the lock nut.
Torque: 55 kg·cm {48 in.·lb, 5.4 N·m}
(d) Install the console box.
