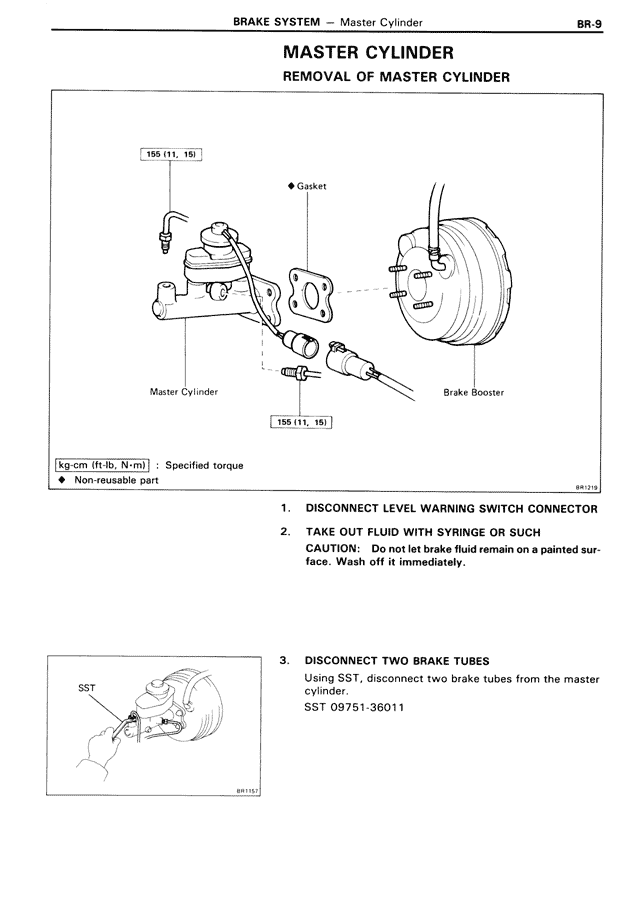

MASTER CYLINDER REMOVAL OF MASTER CYLINDER 156 (11, 15) ◆ Gasket Master Cylinder Brake Booster 155 (11, 15) kg·cm (ft·lb, N·m) : Specified torque ◆ Non-reusable part BR3713 1. DISCONNECT LEVEL WARNING SWITCH CONNECTOR 2. TAKE OUT FLUID WITH SYRINGE OR SUCH CAUTION: Do not let brake fluid remain on a painted sur- face. Wash off it immediately. 3. DISCONNECT TWO BRAKE TUBES Using SST, disconnect two brake tubes from the master cylinder. SST 09751-36011 SST BR1113
