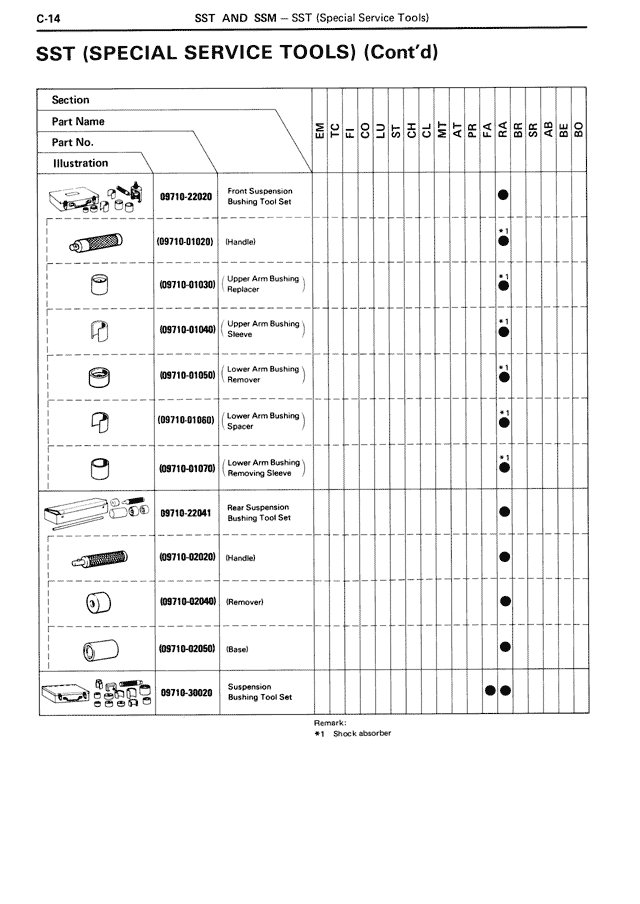

C/SST & SSM — SST (Special Service Tools) (Cont'd), page 14

SST (SPECIAL SERVICE TOOLS) (Cont'd)

Section
Part Name
Part No.
Illustration

09710-22020
Front Suspension Bushing Tool Set

(09710-01020)
(Mandrel)

09710-01030
Upper Arm Bushing Replacer

(09710-01090)
Upper Arm Bushing Sleeve

09710-01050
Lower Arm Bushing Remover

(09710-01060)
Lower Arm Bushing Spacer

(09710-01070)
Lower Arm Bushing Removing Sleeve

09710-22041
Rear Suspension Bushing Tool Set

(09710-02020)
(Mandrel)

(09710-02040)
(Remover)

(09710-02050)
(Base)

09710-30020
Suspension Bushing Tool Set

Remarks
*1 Shock absorber
