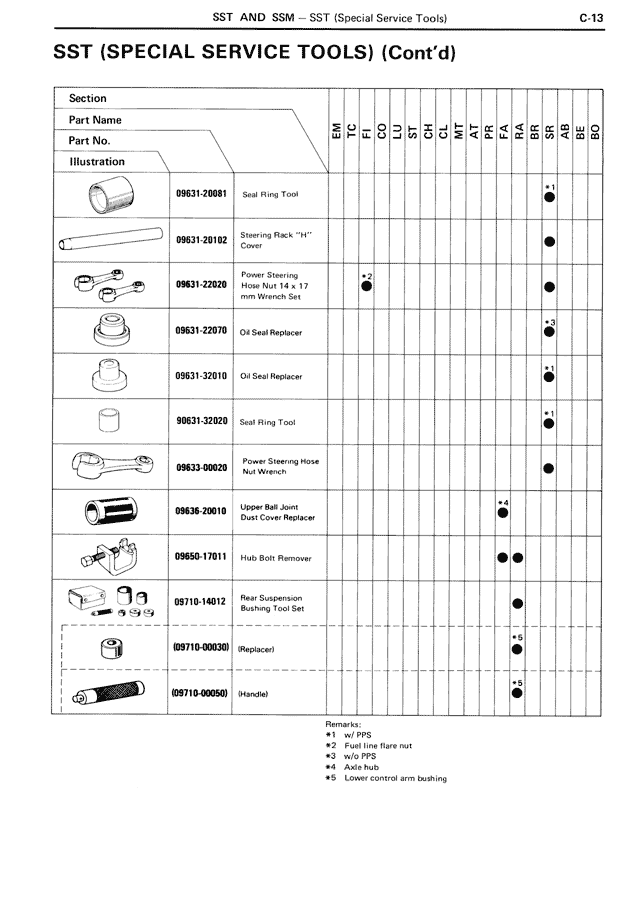

C/SST & SSM — SST (Special Service Tools) (Cont'd), page 13

SST (SPECIAL SERVICE TOOLS) (Cont'd)

Section
Part Name
Part No.
Illustration

09631-20081 | Seal Ring Tool

09631-20102 | Steering Rack "H" Cover

09631-22020 | Power Steering Hose Nut 14 x 17 mm Wrench Set | *2

09631-22070 | Oil Seal Replacer

09631-32010 | Oil Seal Replacer

09631-32020 | Seal Ring Tool

09633-00020 | Power Steering Hose Nut Wrench

09636-20010 | Upper Ball Joint Dust Cover Replacer

09950-17011 | Hub Bolt Remover

09710-14012 | Rear Suspension Bushing Tool Set

(09710-00030) | (Replacer)

(09710-00050) | (Handle)

Remarks:
*1 w/PPS
*2 Fuel line flare nut
*3 w/ABS
*4 Axle hub
*5 Lower control arm bushing
