C-16

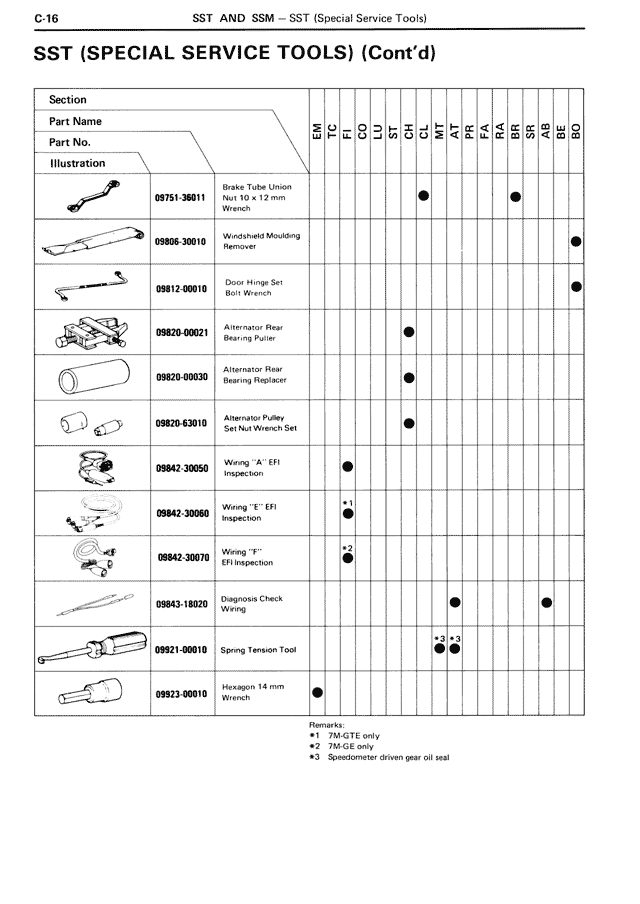

SST AND SSM — SST (Special Service Tools)
SST (SPECIAL SERVICE TOOLS) (Cont'd)
Section
Part Name
Part No.
Illustration
09751-36011
Brake Tube Union Nut 10 × 12 mm Wrench
09806-30010
Windshield Moulding Remover
09812-00010
Door Hinge Set Bolt Wrench
09820-00021
Alternator Rear Bearing Puller
09820-00030
Alternator Rear Bearing Replacer
09820-63010
Alternative Pulley Set Nut Wrench Set
09843-30050
Wiring "A" EFI Inspection
09843-30080
Wiring "E" EFI Inspection
09843-30070
Wiring "F" EFI Inspection
09843-18020
Diagnosis Check Wiring
09321-00010
Spring Tension Tool
09323-00010
Hexagon 14 mm Wrench
Remarks:
*1 7M-GTE only
*2 7M-GE only
*3 Speedometer driven gear oil seal
