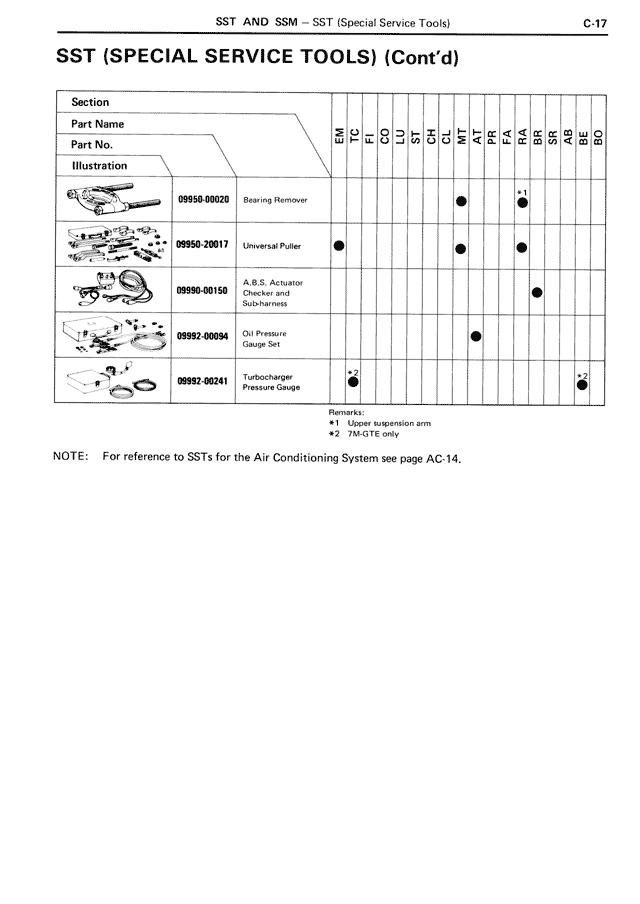

SST (Special Service Tools) (Cont'd) — MK3 Supra SST & SSM, page 17
100%
Page text (OCR transcript)
SST AND SSM — SST (Special Service Tools)                                C-17

SST (SPECIAL SERVICE TOOLS) (Cont'd)

Section
Part Name
Part No.
Illustration

09958-00020    Bearing Remover                                    ●        ●

09950-20017    Universal Puller        ●                    ●        ●

09960-00150    A.B.S. Actuator
               Checker and
               Simulator                                                    ●

09992-00094    Oil Pressure
               Gauge Set                                        ●

09992-00241    Turbocharger
               Pressure Gauge        *2                                    *2

Remarks:
*1  Upper suspension arm
*2  7M-GTE only

NOTE:  For reference to SSTs for the Air Conditioning System see page AC-14.
