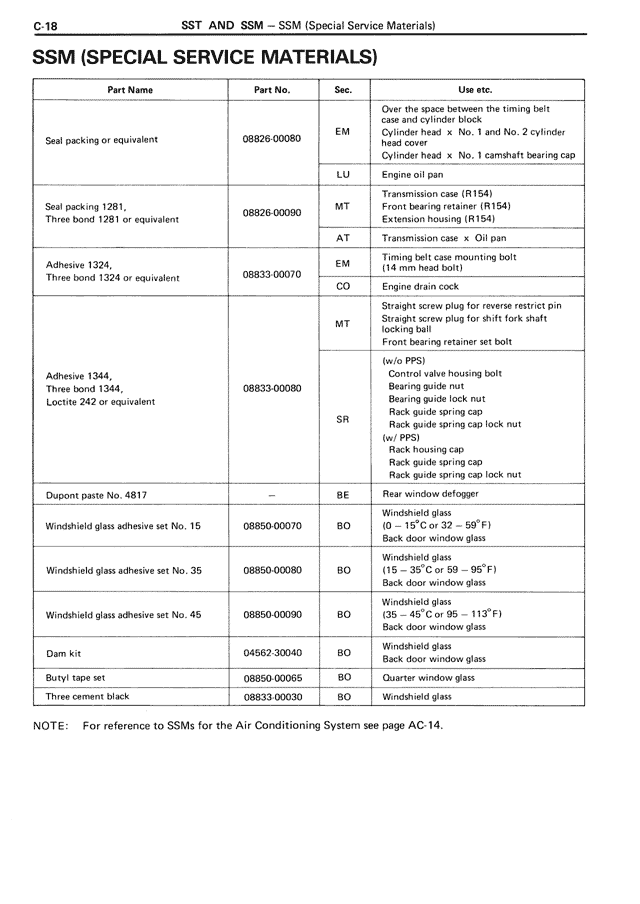

SSM (SPECIAL SERVICE MATERIALS)
Part Name | Part No. | Sec. | Use etc.
Seal packing or equivalent | 08826-00080 | EM | Over the space between timing belt case and cylinder block
| | | Cylinder head × No. 1 and No. 2 cylinder head cover
| | | Cylinder head × No. 1 camshaft bearing cap
| | LU | Engine oil pan
Seal packing 1281, Three bond 1281 or equivalent | 08826-00090 | MT | Transmission case (R154)
| | | Front bearing retainer (R154)
| | | Extension housing (R154)
| | AT | Transmission case × Oil pan
Adhesive 1324, Three bond 1324 or equivalent | 08833-00070 | EM | Timing belt case mounting bolt (14 mm head bolt)
| | CO | Engine drain cock
Adhesive 1344, Three bond 1344, Loctite 242 or equivalent | 08833-00080 | MT | Straight screw plug for reverse restrict pin
| | | Straight screw plug for shift fork shaft locking ball
| | | Front bearing retainer set bolt
| | | (w/o PPS)
| | | Control valve housing bolt
| | | Bearing guide nut
| | | Bearing guide lock nut
| | SR | Rack guide nut
| | | Rack guide spring cap
| | | Rack guide spring cap lock nut
| | | (w/ PPS)
| | | Rack housing cap
| | | Rack guide spring cap
| | | Rack guide spring cap lock nut
Dupont paint No. 4817 | — | BE | Rear window defogger
Windshield glass adhesive set No. 15 | 08850-00070 | BO | Windshield glass
| | | (0 – 15°C or 32 – 59°F)
| | | Back door window glass
Windshield glass adhesive set No. 35 | 08850-00080 | BO | Windshield glass
| | | (15 – 35°C or 59 – 95°F)
| | | Back door window glass
Windshield glass adhesive set No. 45 | 08850-00090 | BO | Windshield glass
| | | (35 – 45°C or 95 – 113°F)
| | | Back door window glass
Dam kit | 04562-30040 | BO | Windshield glass
| | | Back door window glass
Butyl tape set | 08850-00065 | BO | Quarter window glass
Three cement black | 08833-00030 | BO | Windshield glass
NOTE: For reference to SSMs for the Air Conditioning System see page AC-14.
