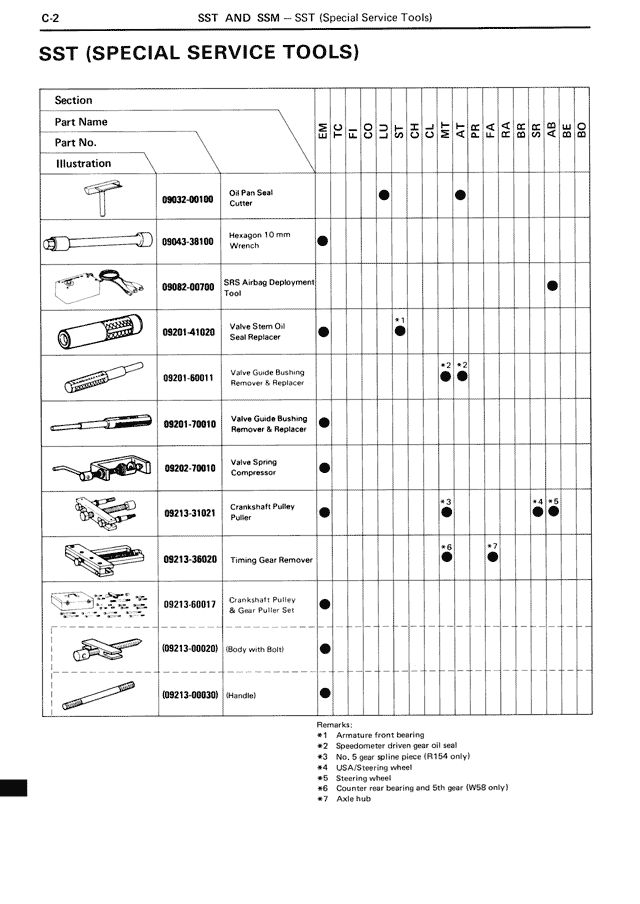

SST (SPECIAL SERVICE TOOLS) — MK3 Supra SST & SSM, page 2
100%
SST (SPECIAL SERVICE TOOLS) Section Part Name Part No. Illustration 09032-00109 Oil Pan Seal Cutter 09043-38100 Hexagon 10 mm Wrench 09082-00709 SRS Airbag Deployment Tool 09201-41020 Valve Stem Oil Seal Replacer 09201-60011 Valve Guide Bushing Remover & Replacer 09201-70010 Valve Guide Bushing Remover & Replacer 09202-70010 Valve Spring Compressor 09213-31021 Crankshaft Pulley Puller 09213-36020 Timing Gear Remover 09213-60017 Crankshaft Pulley & Gear Puller Set (09213-00020) (Body with Bolt) (09213-00030) (Handle) Remarks: *1 Armature front bearing *2 Speedometer driven gear oil seal *3 No. 5 gear spline piece (R154 only) *4 UEA bearing wheel *5 U251 only *6 Counter rear bearing and 5th gear (W58 only) *7 Axle hub
