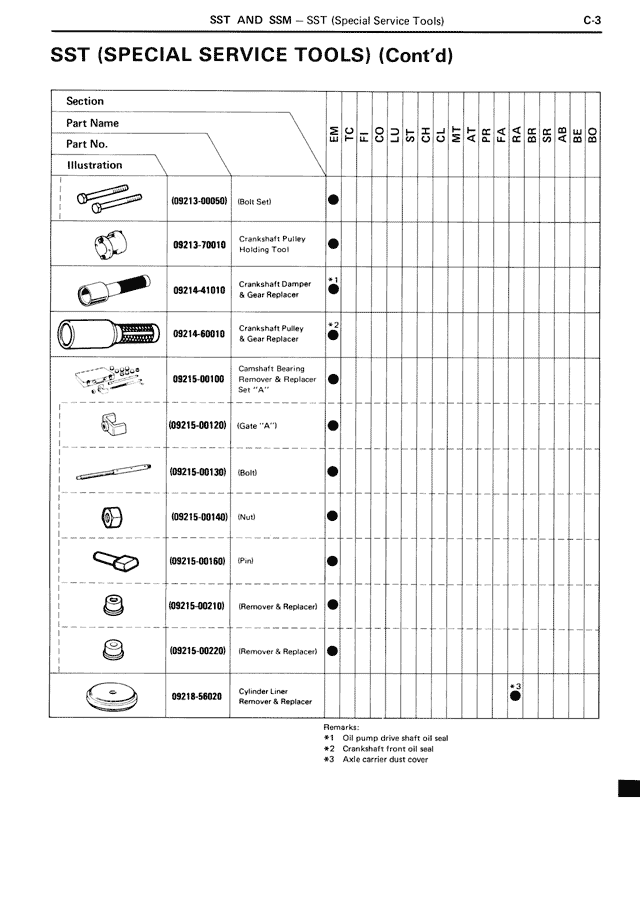

C/SST & SSM — SST (Special Service Tools) (Cont'd), page 3

SST AND SSM - SST (Special Service Tools)                                C-3

SST (SPECIAL SERVICE TOOLS) (Cont'd)

Section
Part Name
Part No.
Illustration

09213-00050    (Bolt Set)

09213-70010    Crankshaft Pulley Holding Tool

09214-41010    Crankshaft Damper & Gear Replacer

09214-60010    Crankshaft Pulley & Gear Replacer

09215-00100    Camshaft Bearing Remover & Replacer Set *2

09215-00120    (Gate "A")

09215-00130    (Bolt)

09215-00140    (Nut)

09215-00160    (Pin)

09215-00210    (Remover & Replacer)

09215-00220    (Remover & Replacer)

09218-56020    Cylinder Liner Remover & Replacer

REMARKS:
*1  Oil pump drive shaft oil seal
*2  Crankshaft front oil seal
*3  Axle carrier dust cover
