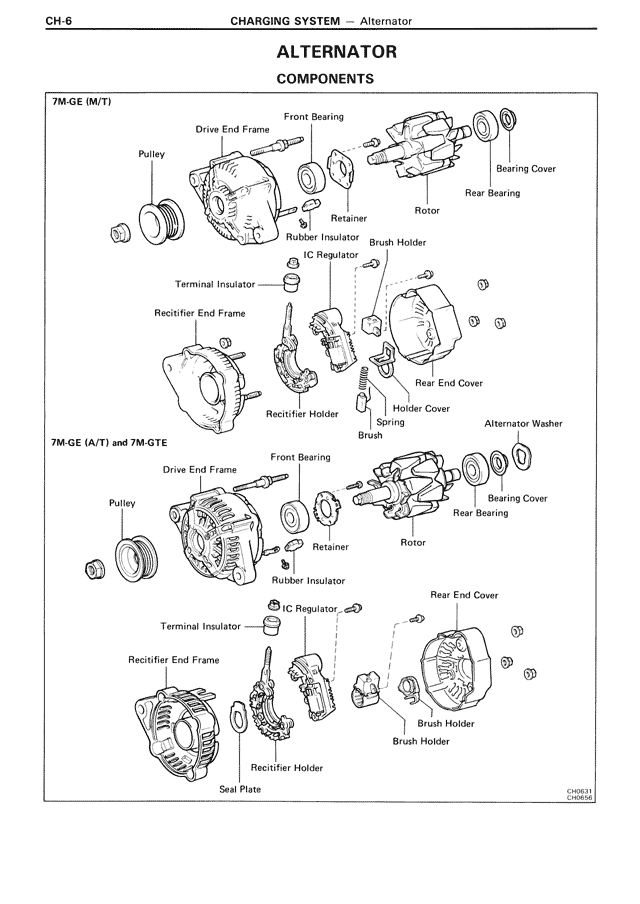

ALTERNATOR
COMPONENTS
7M-GE (M/T)
Drive End Frame
Pulley
Front Bearing
Bearing Cover
Rear Bearing
Rotor
Retainer
Rubber Insulator
Brush Holder
IC Regulator
Terminal Insulator
Rectifier End Frame
Rear End Cover
Holder Cover
Rectifier Holder
Spring
Brush
Alternator Washer
7M-GE (A/T) and 7M-GTE
Drive End Frame
Pulley
Front Bearing
Bearing Cover
Rear Bearing
Rotor
Retainer
Rubber Insulator
IC Regulator
Terminal Insulator
Rear End Cover
Rectifier End Frame
Brush Holder
Brush Holder
Rectifier Holder
Seal Plate
