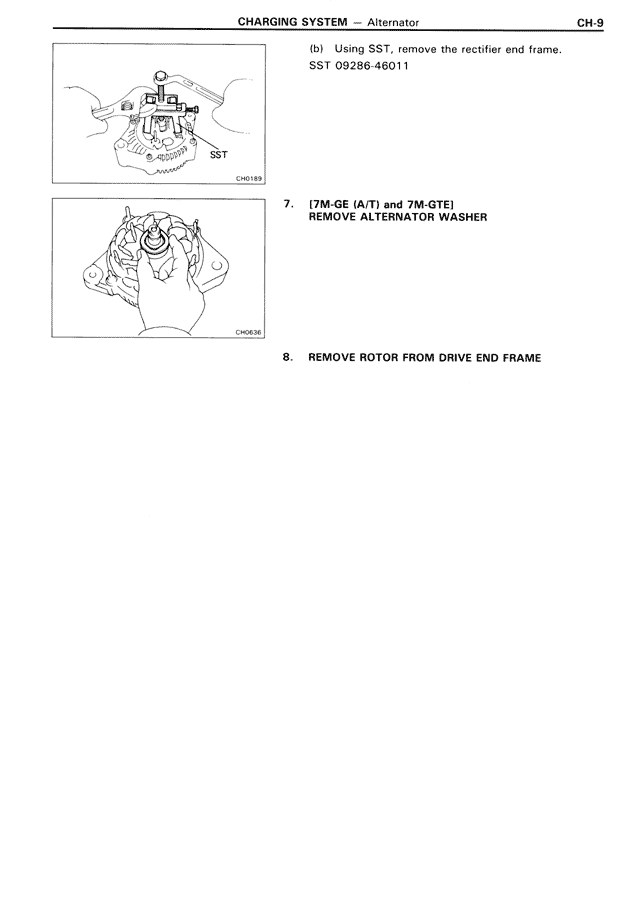

CHARGING SYSTEM — Alternator CH-9 (b) Using SST, remove the rectifier end frame. SST 09286 46011 7. [7M-GE (A/T) and 7M-GTE] REMOVE ALTERNATOR WASHER 8. REMOVE ROTOR FROM DRIVE END FRAME
