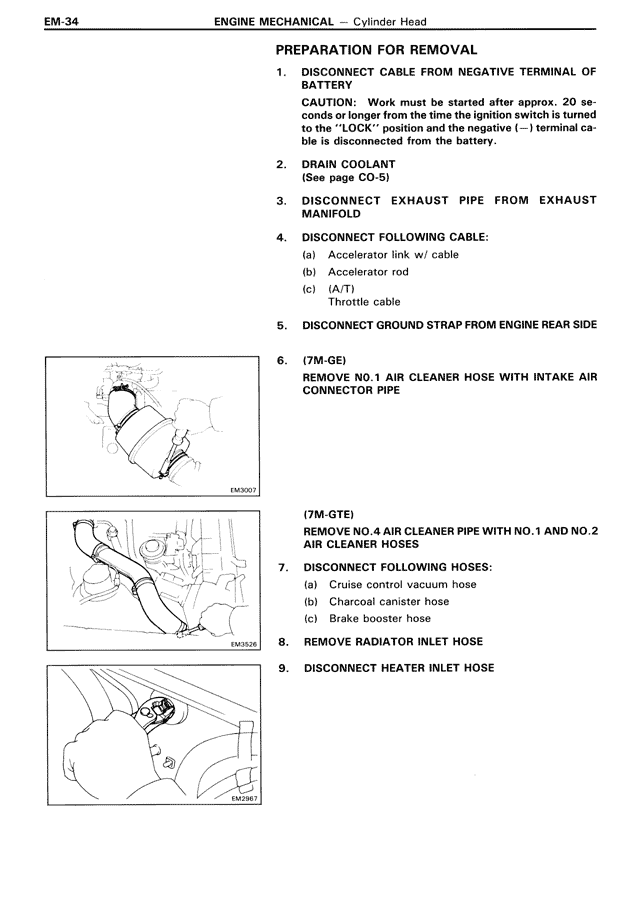

EM/Engine Mechanical — Preparation for Removal, page 34

PREPARATION FOR REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY
CAUTION: Work must be started after approx. 20 seconds or longer from the time the ignition switch is turned to the "LOCK" position and the negative (—) terminal cable is disconnected from the battery.

2. DRAIN COOLANT
(See page CO-5)

3. DISCONNECT EXHAUST PIPE FROM EXHAUST MANIFOLD

4. DISCONNECT FOLLOWING CABLE:
(a) Accelerator link w/ cable
(b) Accelerator rod
(c) (A/T)
Throttle cable

5. DISCONNECT GROUND STRAP FROM ENGINE REAR SIDE

6. (7M-GE)
REMOVE NO.1 AIR CLEANER HOSE WITH INTAKE AIR CONNECTOR PIPE

(7M-GTE)
REMOVE NO.4 AIR CLEANER PIPE WITH NO.1 AND NO.2 AIR CLEANER HOSES

7. DISCONNECT FOLLOWING HOSES:
(a) Cruise control vacuum hose
(b) Charcoal canister hose
(c) Brake booster hose

8. REMOVE RADIATOR INLET HOSE

9. DISCONNECT HEATER INLET HOSE
