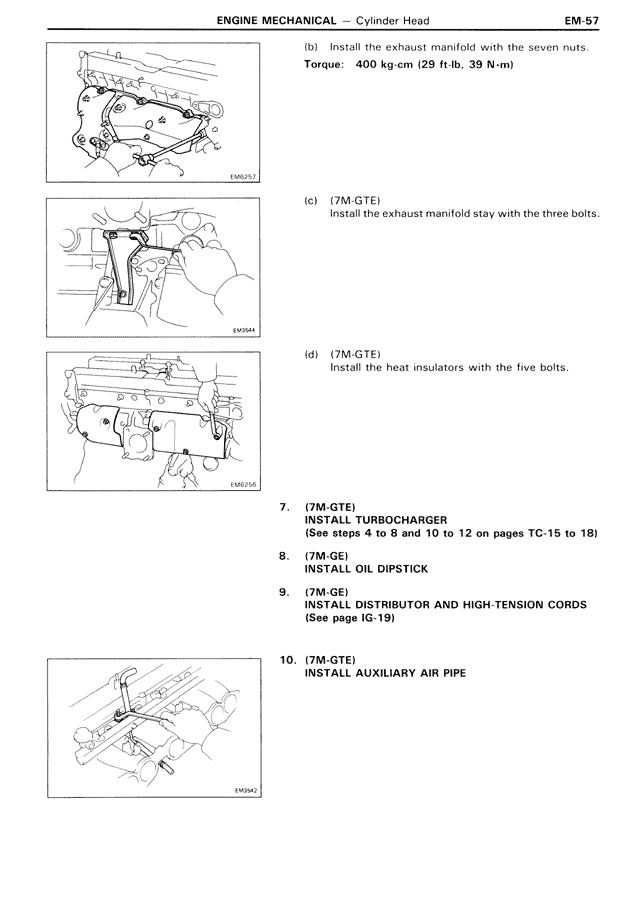

ENGINE MECHANICAL — Cylinder Head — MK3 Supra Engine Mechanical, page 57
100%
ENGINE MECHANICAL — Cylinder Head EM-57 (b) Install the exhaust manifold with the seven nuts. Torque: 400 kg-cm (29 ft-lb, 39 N-m) (c) (7M-GTE) Install the exhaust manifold stay with the three bolts. (d) (7M-GTE) Install the heat insulators with the five bolts. 7. (7M-GTE) INSTALL TURBOCHARGER (See steps 4 to 8 and 10 to 12 on pages TC-15 to 18) 8. (7M-GE) INSTALL OIL DIPSTICK 9. (7M-GE) INSTALL DISTRIBUTOR AND HIGH-TENSION CORDS (See page IG-19) 10. (7M-GTE) INSTALL AUXILIARY AIR PIPE
