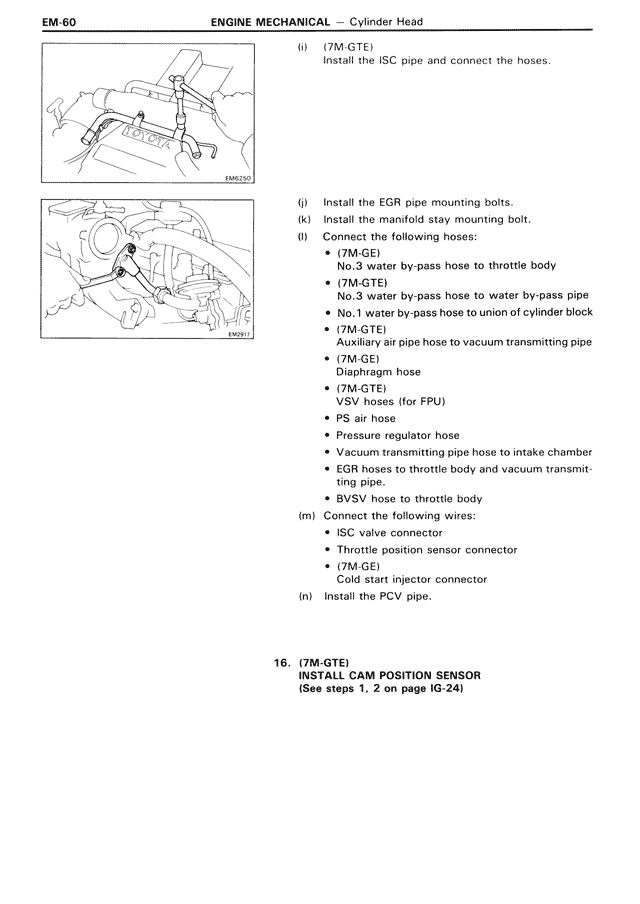

EM-60 ENGINE MECHANICAL — Cylinder Head (i) (7M-GTE) Install the ISC pipe and connect the hoses. (j) Install the EGR pipe mounting bolts. (k) Install the manifold stay mounting bolt. (l) Connect the following hoses: • (7M-GE) No.3 water by-pass hose to throttle body • (7M-GTE) No.3 water by-pass hose to water by-pass pipe • No.1 water by-pass hose to union of cylinder block • (7M-GTE) Auxiliary air pipe hose to vacuum transmitting pipe • (7M-GE) Diaphragm hose • (7M-GTE) VSV hoses (for FPU) • PS air hose • Pressure regulator hose • Vacuum transmitting pipe hose to intake chamber • EGR hoses to throttle body and vacuum transmitting pipe. • BVSV hose to throttle body (m) Connect the following wires: • ISC valve connector • Throttle position sensor connector • (7M-GE) Cold start injector connector (n) Install the PCV pipe. 16. (7M-GTE) INSTALL CAM POSITION SENSOR (See steps 1, 2 on page IG-24)
