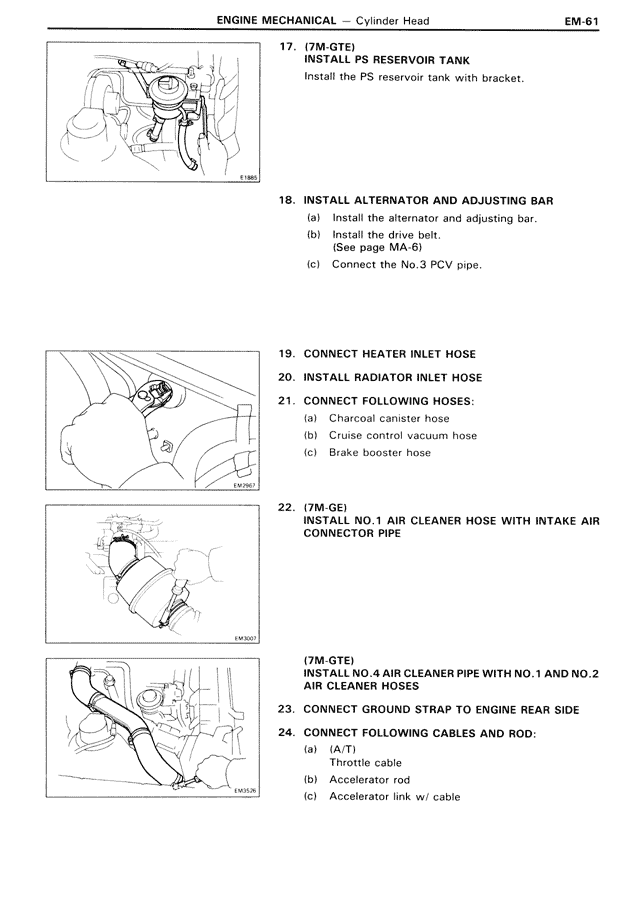

17. (7M-GTE)
INSTALL PS RESERVOIR TANK
Install the PS reservoir tank with bracket.
18. INSTALL ALTERNATOR AND ADJUSTING BAR
(a) Install the alternator and adjusting bar.
(b) Install the drive belt.
(See page MA-6)
(c) Connect the No.3 PCV pipe.
19. CONNECT HEATER INLET HOSE
20. INSTALL RADIATOR INLET HOSE
21. CONNECT FOLLOWING HOSES:
(a) Charcoal canister hose
(b) Cruise control vacuum hose
(c) Brake booster hose
22. (7M-GE)
INSTALL NO.1 AIR CLEANER HOSE WITH INTAKE AIR
CONNECTOR PIPE
(7M-GTE)
INSTALL NO.4 AIR CLEANER PIPE WITH NO.1 AND NO.2
AIR CLEANER HOSES
23. CONNECT GROUND STRAP TO ENGINE REAR SIDE
24. CONNECT FOLLOWING CABLES AND ROD:
(a) (A/T)
Throttle cable
(b) Accelerator rod
(c) Accelerator link w/ cable
