ENGINE MECHANICAL— Cylinder Block
EM-63
CYLINDER BLOCK

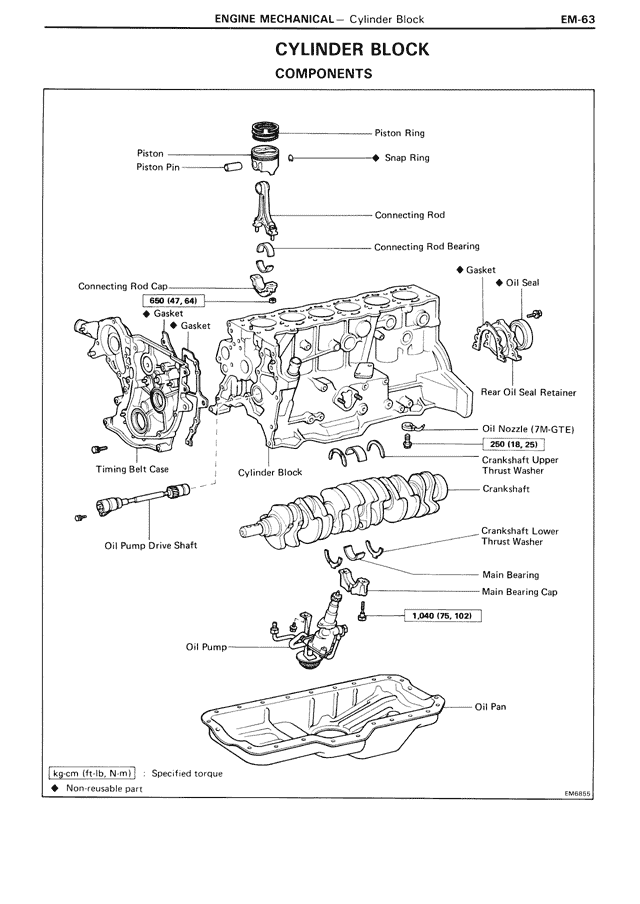

COMPONENTS
Piston Ring
Piston
Snap Ring
Piston Pin
Connecting Rod
Connecting Rod Bearing
Connecting Rod Cap
Gasket
650 (47, 64)
Gasket
Gasket
Oil Seal
Rear Oil Seal Retainer
Oil Nozzle (7M-GTE)
250 (18, 25)
Crankshaft Upper
Timing Belt Case
Cylinder Block
Thrust Washer
Crankshaft
Crankshaft Lower
Thrust Washer
Oil Pump Drive Shaft
Main Bearing
Main Bearing Cap
1.2MD (75, 102)
Oil Pump
Oil Pan
kg·cm (ft·lb, N·m) : Specified torque
◆ Non-reusable part
EM6883
