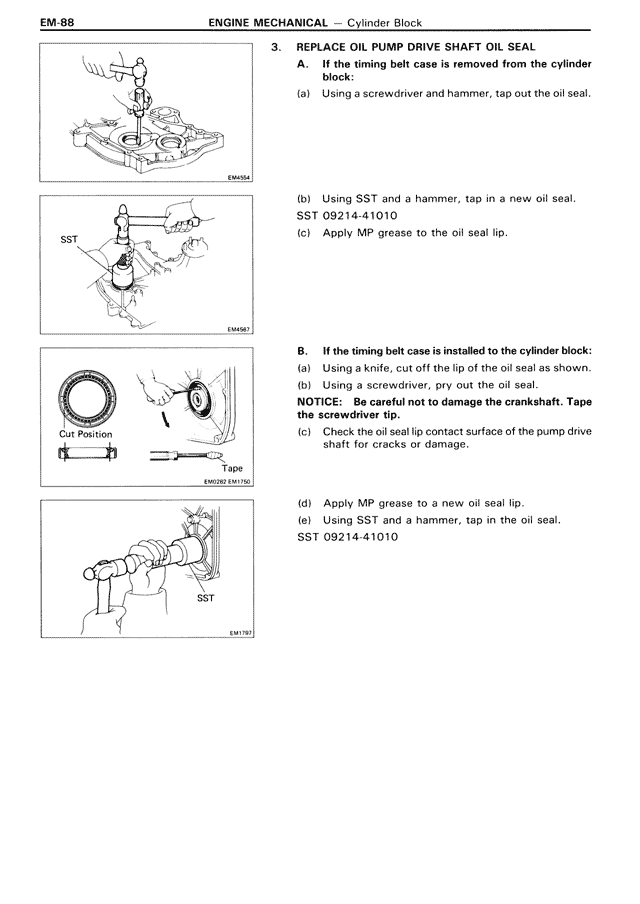

EM-88 ENGINE MECHANICAL — Cylinder Block 3. REPLACE OIL PUMP DRIVE SHAFT OIL SEAL A. If the timing belt case is removed from the cylinder block: (a) Using a screwdriver and hammer, tap out the oil seal. (b) Using SST and a hammer, tap in a new oil seal. SST 09214-41010 (c) Apply MP grease to the oil seal lip. B. If the timing belt case is installed to the cylinder block: (a) Using a knife, cut off the lip of the oil seal as shown. (b) Using a screwdriver, pry out the oil seal. NOTICE: Be careful not to damage the crankshaft. Tape the screwdriver tip. (c) Check the oil seal lip contact surface of the pump drive shaft for cracks or damage. (d) Apply MP grease to a new oil seal lip. (e) Using SST and a hammer, tap in the oil seal. SST 09214-41010
