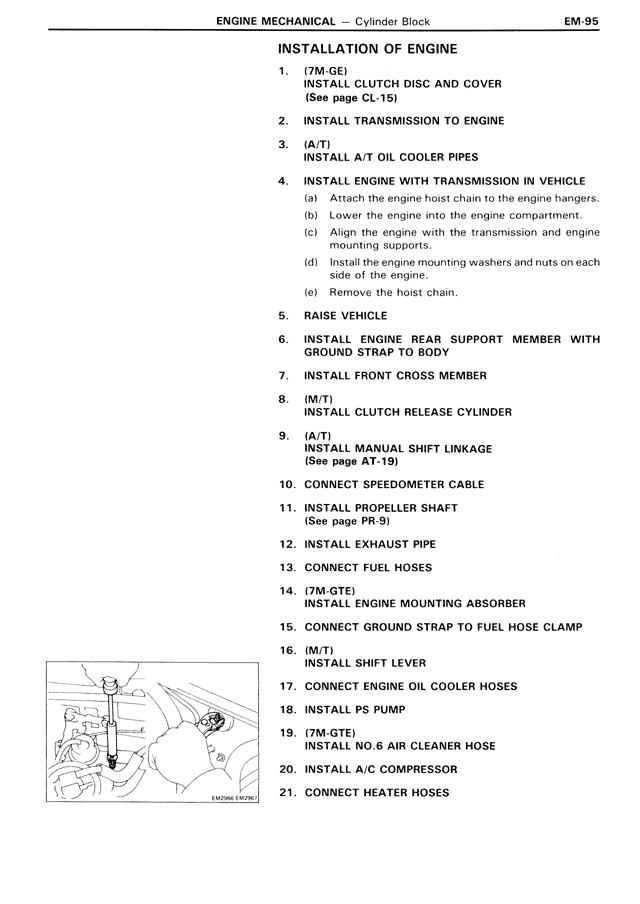

INSTALLATION OF ENGINE
1. (7M-GE)
INSTALL CLUTCH DISC AND COVER
(See page CL-15)
2. INSTALL TRANSMISSION TO ENGINE
3. (A/T)
INSTALL A/T OIL COOLER PIPES
4. INSTALL ENGINE WITH TRANSMISSION IN VEHICLE
(a) Attach the engine hoist chain to the engine hangers.
(b) Lower the engine into the engine compartment.
(c) Align the engine with the transmission and engine
mounting supports.
(d) Install the engine mounting washers and nuts on each
side of the engine.
(e) Remove the hoist chain.
5. RAISE VEHICLE
6. INSTALL ENGINE REAR SUPPORT MEMBER WITH
GROUND STRAP TO BODY
7. INSTALL FRONT CROSS MEMBER
8. (M/T)
INSTALL CLUTCH RELEASE CYLINDER
9. (A/T)
INSTALL MANUAL SHIFT LINKAGE
(See page AT-19)
10. CONNECT SPEEDOMETER CABLE
11. INSTALL PROPELLER SHAFT
(See page PR-9)
12. INSTALL EXHAUST PIPE
13. CONNECT FUEL HOSES
14. (7M-GTE)
INSTALL ENGINE MOUNTING ABSORBER
15. CONNECT GROUND STRAP TO FUEL HOSE CLAMP
16. (M/T)
INSTALL SHIFT LEVER
17. CONNECT ENGINE OIL COOLER HOSES
18. INSTALL PS PUMP
19. (7M-GTE)
INSTALL NO.6 AIR CLEANER HOSE
20. INSTALL A/C COMPRESSOR
21. CONNECT HEATER HOSES
