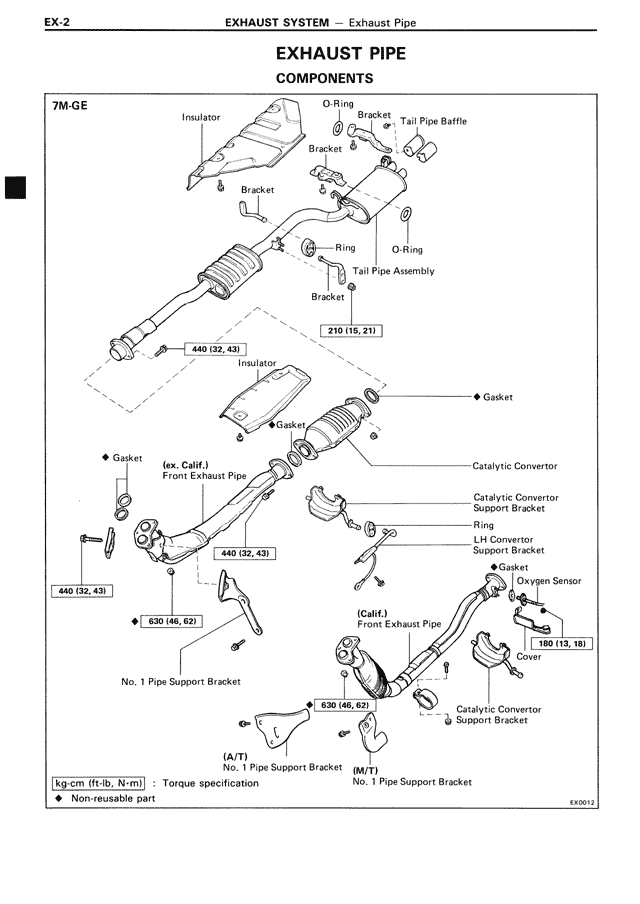

EXHAUST PIPE
COMPONENTS
7M-GE
Insulator
O-Ring
Bracket
Tail Pipe Baffle
Bracket
Bracket
O-Ring
Ring
Tail Pipe Assembly
Bracket
210 (15, 21)
440 (32, 43)
Insulator
Gasket
Gasket
Catalytic Convertor
Gasket
(ex. Calif.)
Front Exhaust Pipe
Catalytic Convertor
Support Bracket
O-Ring
LH Convertor
Support Bracket
440 (32, 43)
Gasket
Oxygen Sensor
440 (32, 43)
(ex.Calif.)
Front Exhaust Pipe
180 (13, 18)
Cover
630 (46, 62)
No. 1 Pipe Support Bracket
630 (46, 62)
Catalytic Convertor
Support Bracket
(A/T)
No. 1 Pipe Support Bracket
(M/T)
No. 1 Pipe Support Bracket
kg·cm (ft·lb, N·cm) : Torque specification
♦ Non-reusable part
EX0012
