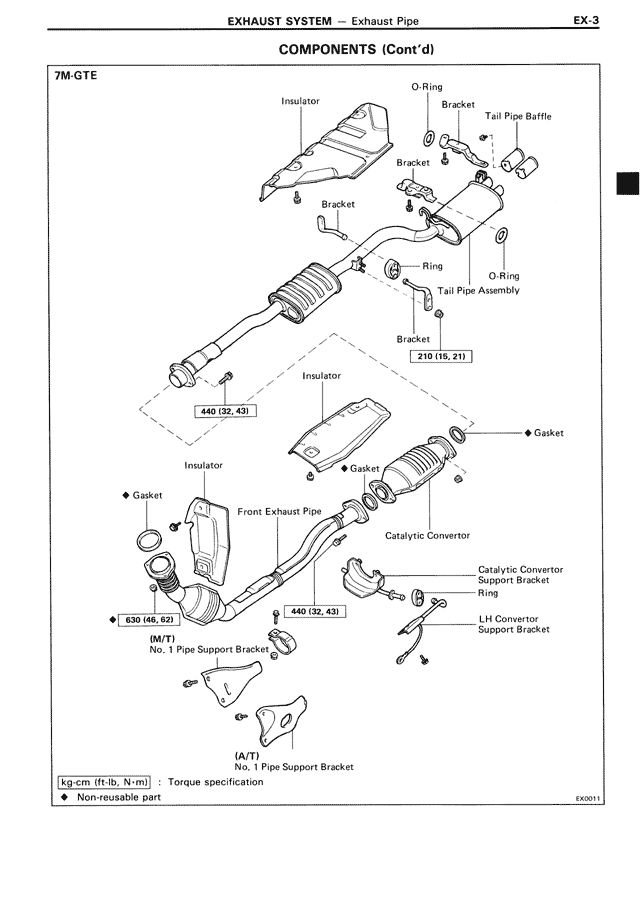

EXHAUST SYSTEM — Exhaust Pipe                                                    EX-3

COMPONENTS (Cont'd)

7M-GTE

O-Ring
Insulator                                    Bracket
                                                                    Tail Pipe Baffle

                                        Bracket

                                                            Bracket

                                                                                            Ring
                                                                                O-Ring
                                                                        Tail Pipe Assembly

                                                            Bracket
                                        210 (15, 21)
                        Insulator

            440 (32, 43)
                                                        ♦ Gasket
                Insulator
                                                ♦ Gasket
        ♦ Gasket                                        Front Exhaust Pipe
                                                                    Catalytic Converter

                                                                                    Catalytic Converter
                                                                                    Support Bracket
                                                                                    Ring
                                    440 (32, 43)                            LH Converter
        630 (46, 62)                                                        Support Bracket
            (M/T)
                        No. 1 Pipe Support Bracket




            (A/T)
            No. 1 Pipe Support Bracket

[kg·cm (ft·lb, N·cm)] : Torque specification
♦ Non-reusable part
                                                                                                EX0011
