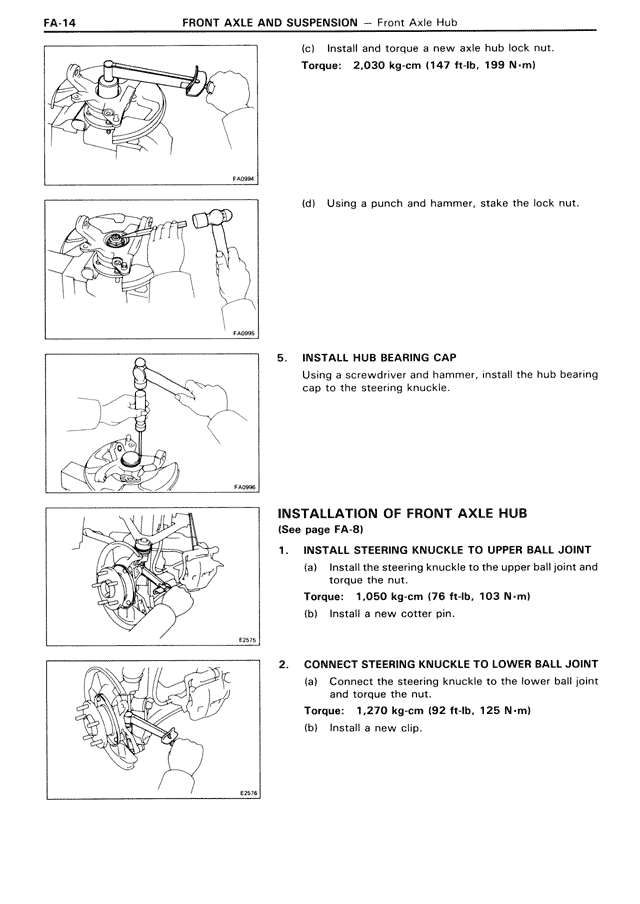

FA-14 FRONT AXLE AND SUSPENSION — Front Axle Hub
(c) Install and torque a new axle hub lock nut.
Torque: 2,030 kg-cm (147 ft-lb, 199 N·m)
(d) Using a punch and hammer, stake the lock nut.
5. INSTALL HUB BEARING CAP
Using a screwdriver and hammer, install the hub bearing cap to the steering knuckle.
INSTALLATION OF FRONT AXLE HUB
(See page FA-8)
1. INSTALL STEERING KNUCKLE TO UPPER BALL JOINT
(a) Install the steering knuckle to the upper ball joint and torque the nut.
Torque: 1,050 kg-cm (76 ft-lb, 103 N·m)
(b) Install a new cotter pin.
2. CONNECT STEERING KNUCKLE TO LOWER BALL JOINT
(a) Connect the steering knuckle to the lower ball joint and torque the nut.
Torque: 1,270 kg-cm (92 ft-lb, 125 N·m)
(b) Install a new clip.
