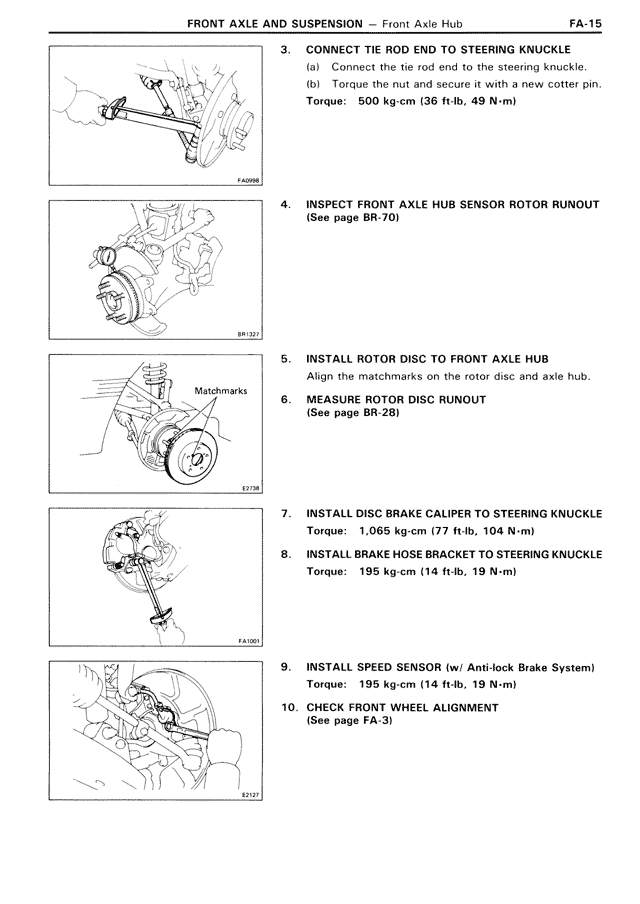

3. CONNECT TIE ROD END TO STEERING KNUCKLE
(a) Connect the rod end to the steering knuckle.
(b) Torque the nut and secure it with a new cotter pin.
Torque: 500 kg-cm (36 ft-lb, 49 N·m)
4. INSPECT FRONT AXLE HUB SENSOR ROTOR RUNOUT
(See page BR-70)
5. INSTALL ROTOR DISC TO FRONT AXLE HUB
Align the matchmarks on the rotor disc and axle hub.
6. MEASURE ROTOR DISC RUNOUT
(See page BR-28)
7. INSTALL DISC BRAKE CALIPER TO STEERING KNUCKLE
Torque: 1,065 kg-cm (77 ft-lb, 104 N·m)
8. INSTALL BRAKE HOSE BRACKET TO STEERING KNUCKLE
Torque: 195 kg-cm (14 ft-lb, 19 N·m)
9. INSTALL SPEED SENSOR (w/ Anti-lock Brake System)
Torque: 195 kg-cm (14 ft-lb, 19 N·m)
10. CHECK FRONT WHEEL ALIGNMENT
(See page FA-3)
