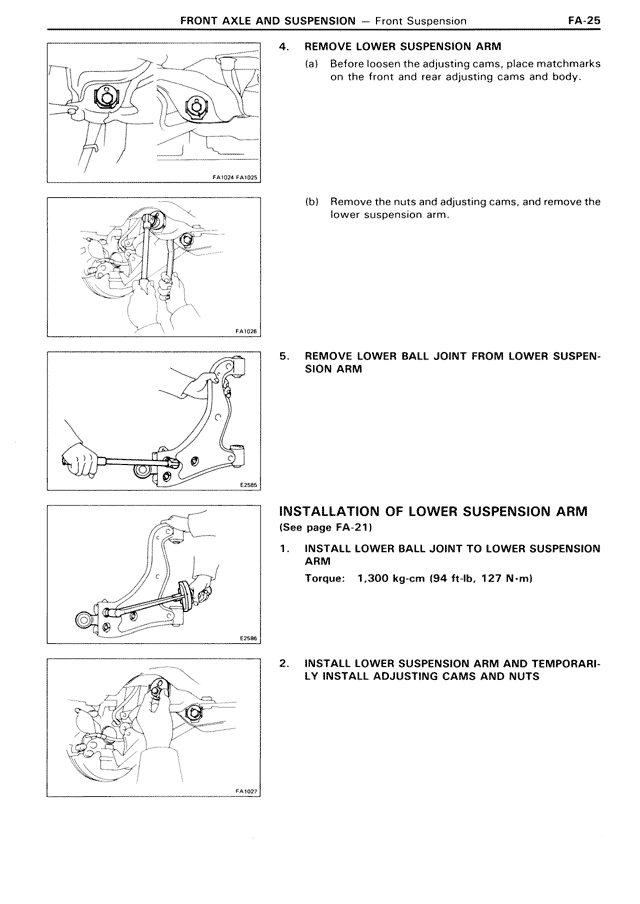

4. REMOVE LOWER SUSPENSION ARM
(a) Before loosen the adjusting cams, place matchmarks on the front and rear adjusting cams and body.
(b) Remove the nuts and adjusting cams, and remove the lower suspension arm.
5. REMOVE LOWER BALL JOINT FROM LOWER SUSPENSION ARM
INSTALLATION OF LOWER SUSPENSION ARM
(See page FA-21)
1. INSTALL LOWER BALL JOINT TO LOWER SUSPENSION ARM
Torque: 1,300 kg·cm (94 ft·lb, 127 N·m)
2. INSTALL LOWER SUSPENSION ARM AND TEMPORARILY INSTALL ADJUSTING CAMS AND NUTS
