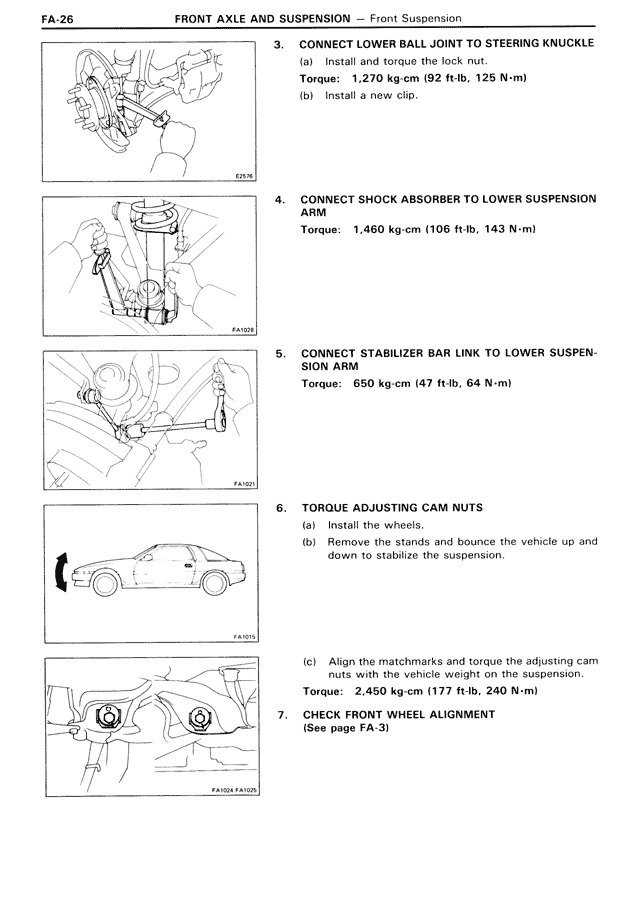

3. CONNECT LOWER BALL JOINT TO STEERING KNUCKLE
(a) Install and torque the lock nut.
Torque: 1,270 kg·cm (92 ft·lb, 125 N·m)
(b) Install a new clip.
4. CONNECT SHOCK ABSORBER TO LOWER SUSPENSION ARM
Torque: 1,460 kg·cm (106 ft·lb, 143 N·m)
5. CONNECT STABILIZER BAR LINK TO LOWER SUSPEN-SION ARM
Torque: 650 kg·cm (47 ft·lb, 64 N·m)
6. TORQUE ADJUSTING CAM NUTS
(a) Install the wheels.
(b) Remove the stands and bounce the vehicle up and down to stabilize the suspension.
(c) Align the matchmarks and torque the adjusting cam nuts with the vehicle weight on the suspension.
Torque: 2,450 kg·cm (177 ft·lb, 240 N·m)
7. CHECK FRONT WHEEL ALIGNMENT
(See page FA-3)
