FA/Front Axle & Suspension — Toyota Electronic Modulated Suspension (TEMS), page 29

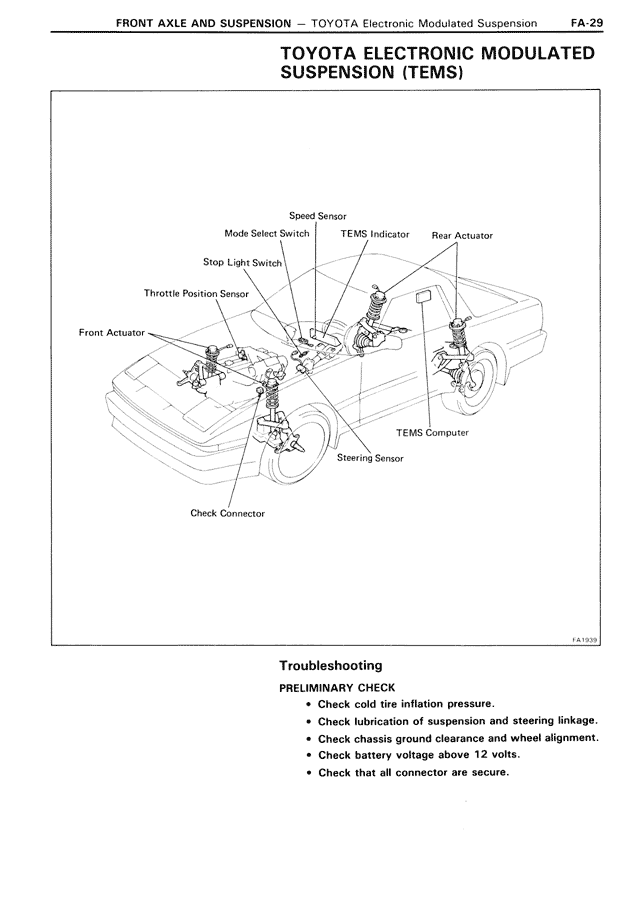

TOYOTA ELECTRONIC MODULATED
SUSPENSION (TEMS)

Speed Sensor
Mode Select Switch
TEMS Indicator
Rear Actuator
Stop Light Switch
Throttle Position Sensor
Front Actuator
TEMS Computer
Steering Sensor
Check Connector

FA1993

Troubleshooting

PRELIMINARY CHECK
• Check cold tire inflation pressure.
• Check lubrication of suspension and steering linkage.
• Check chassis ground clearance and wheel alignment.
• Check battery voltage above 12 volts.
• Check that all connector are secure.
