← p.027
FA
/
Front Axle & Suspension
28 / 42
p.029 →
−
100%
+

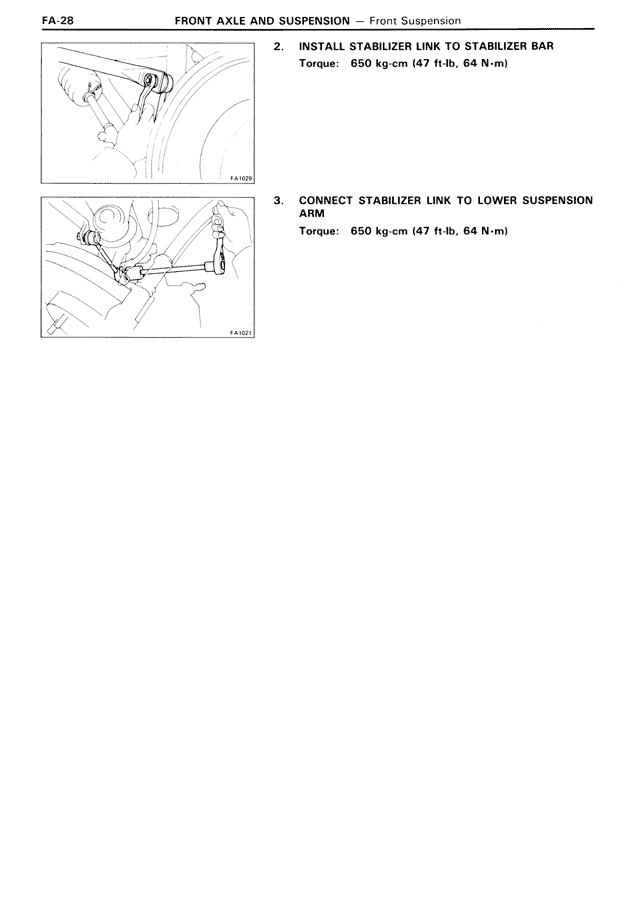

FA-28 FRONT AXLE AND SUSPENSION — Front Suspension 2. INSTALL STABILIZER LINK TO STABILIZER BAR Torque: 650 kg·cm (47 ft·lb, 64 N·m) 3. CONNECT STABILIZER LINK TO LOWER SUSPENSION ARM Torque: 650 kg·cm (47 ft·lb, 64 N·m)
