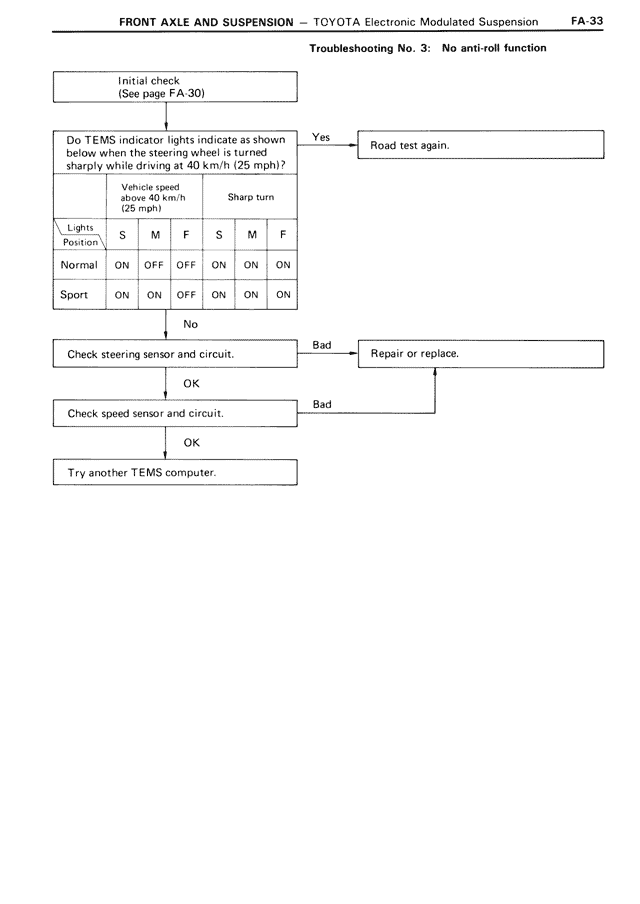

Troubleshooting No. 3: No anti-roll function — MK3 Supra Front Axle & Suspension, page 33
100%
FRONT AXLE AND SUSPENSION — TOYOTA Electronic Modulated Suspension FA-33 Troubleshooting No. 3: No anti-roll function Initial check (See page FA-30) Do TEMS indicator lights indicate as shown below when the steering wheel is turned sharply while driving at 40 km/h (25 mph)? Vehicle speed above 40 km/h (25 mph) | Sharp turn Lights Position | S M F | S M F Normal | ON OFF OFF | ON ON ON Sport | ON ON OFF | ON ON ON Yes → Road test again. No ↓ Check steering sensor and circuit. Bad → Repair or replace. OK ↓ Check speed sensor and circuit. Bad → [connects to Repair or replace] OK ↓ Try another TEMS computer.
