FA-34     FRONT AXLE AND SUSPENSION — TOYOTA Electronic Modulated Suspension

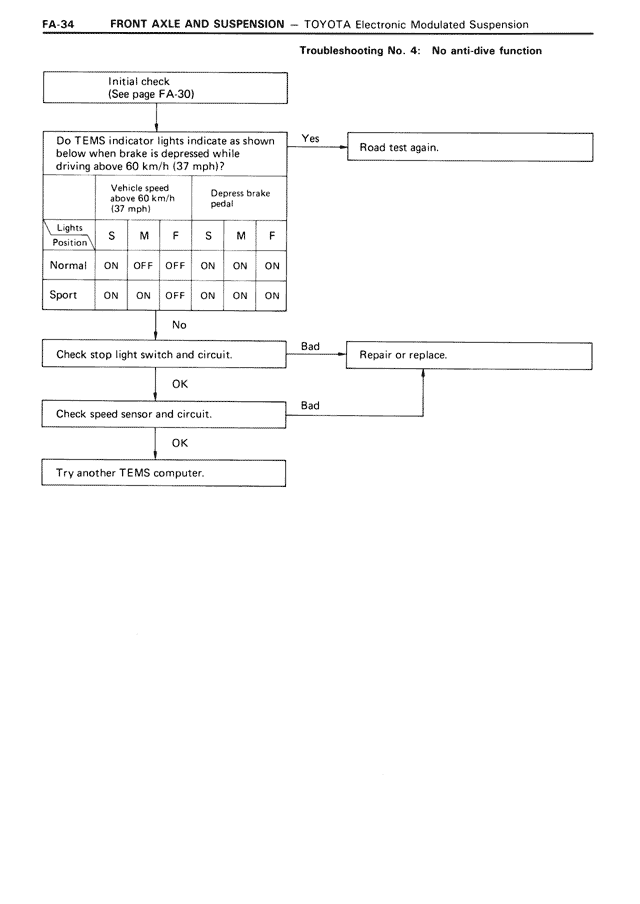

Troubleshooting No. 4:  No anti-dive function

Initial check
(See page FA-30)

Do T·EMS indicator lights indicate as shown below when brake is depressed while driving above 60 km/h (37 mph)?

Vehicle speed above 60 km/h (37 mph)    Depress brake pedal

Lights Position    S    M    F    S    M    F

Normal    ON    OFF    OFF    ON    ON    ON

Sport    ON    ON    OFF    ON    ON    ON

Yes → Road test again.

No ↓

Check stop light switch and circuit.

Bad → Repair or replace.

OK ↓

Check speed sensor and circuit.

Bad → (returns to Repair or replace)

OK ↓

Try another T·EMS computer.
