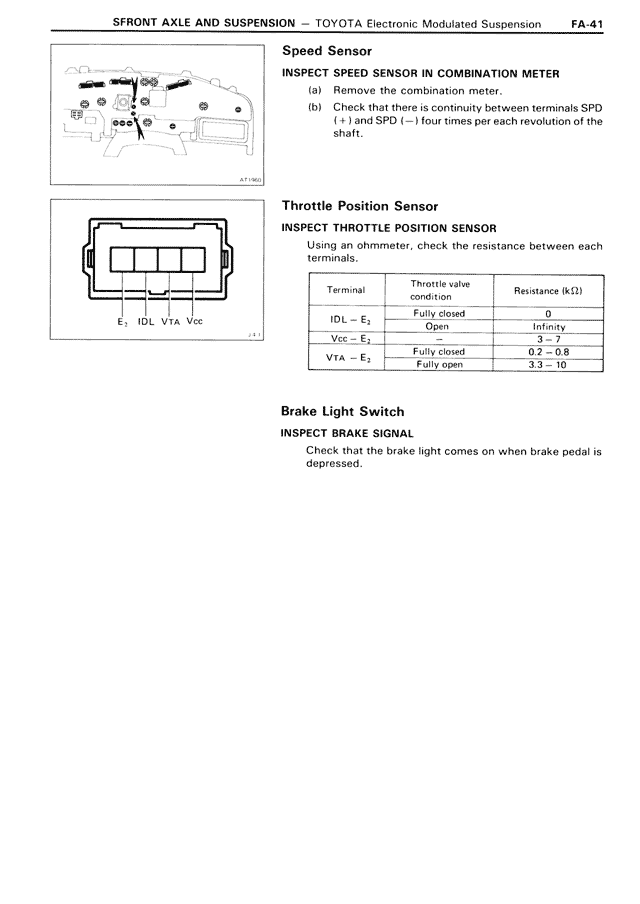

Speed Sensor
INSPECT SPEED SENSOR IN COMBINATION METER
(a) Remove the combination meter.
(b) Check that there is continuity between terminals SPD (+) and SPD (-) four times per each revolution of the shaft.
Throttle Position Sensor
INSPECT THROTTLE POSITION SENSOR
Using an ohmmeter, check the resistance between each terminals.
Terminal | Throttle valve condition | Resistance (kΩ)
IDL - E2 | Fully closed | 0
IDL - E2 | Open | Infinity
Vcc - E2 | | 3-7
VTA - E2 | Fully closed | 0.2-0.8
VTA - E2 | Fully open | 3.3-10
Brake Light Switch
INSPECT BRAKE SIGNAL
Check that the brake light comes on when brake pedal is depressed.
