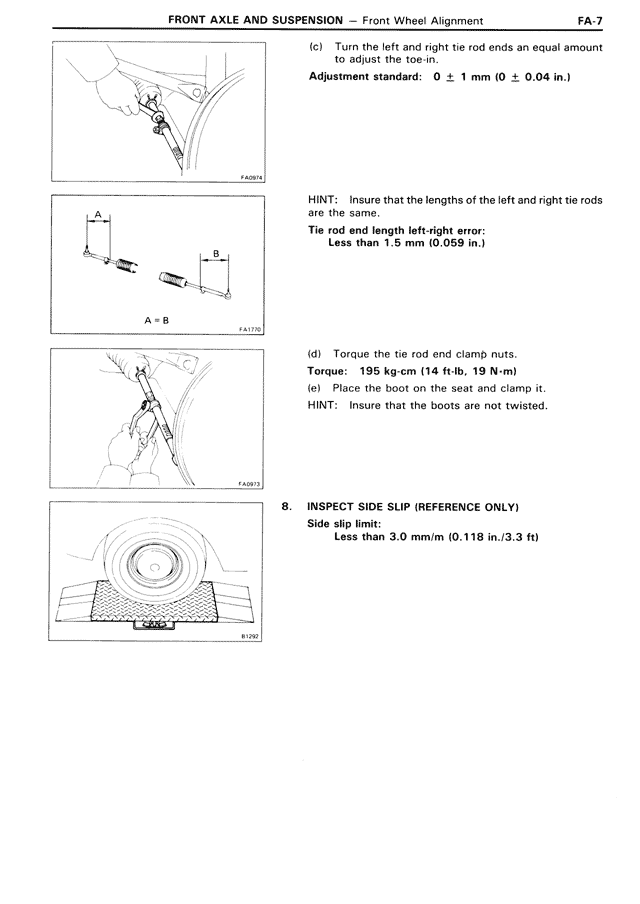

(c) Turn the left and right tie rod ends an equal amount to adjust the toe-in.
Adjustment standard: 0 ± 1 mm (0 ± 0.04 in.)
HINT: Insure that the lengths of the left and right tie rods are the same.
Tie rod end length left-right error:
Less than 1.5 mm (0.059 in.)
A = B
(d) Torque the tie rod end clamp nuts.
Torque: 195 kg·cm (14 ft·lb, 19 N·m)
(e) Place the boot on the seat and clamp it.
HINT: Insure that the boots are not twisted.
8. INSPECT SIDE SLIP (REFERENCE ONLY)
Side slip limit:
Less than 3.0 mm/m (0.118 in./3.3 ft)
