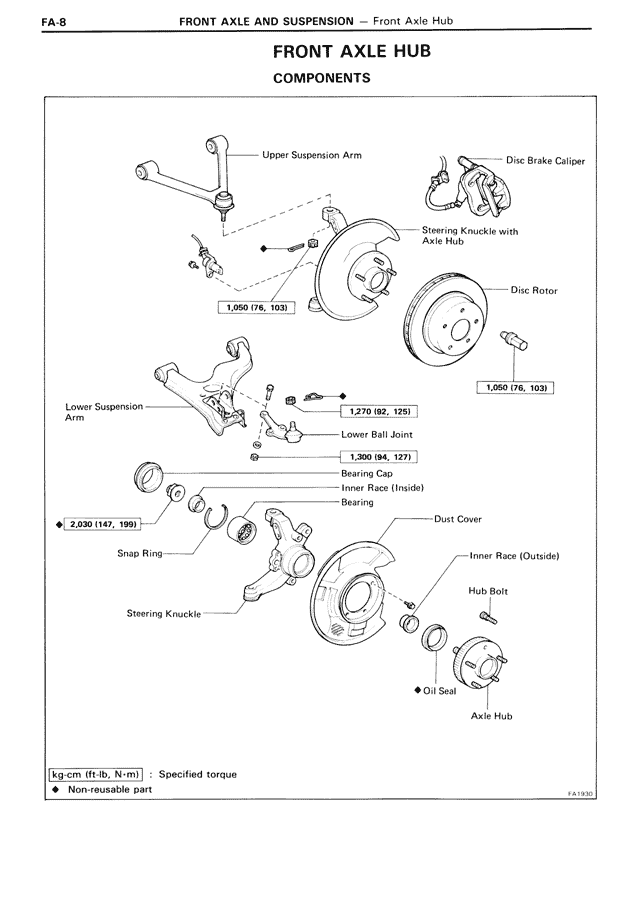

FRONT AXLE HUB COMPONENTS Upper Suspension Arm Disc Brake Caliper Steering Knuckle with Axle Hub Disc Rotor 1,050 (76, 103) 1,050 (76, 103) Lower Suspension Arm 1,270 (92, 126) Lower Ball Joint 1,300 (94, 127) Bearing Cap Inner Race (Inside) Bearing ♦ 2,030 (147, 199) Dust Cover Snap Ring Inner Race (Outside) Steering Knuckle Hub Bolt ♦Oil Seal Axle Hub [kg·cm (ft·lb, N·m)] : Specified torque ♦ Non-reusable part FA 1/3/91
