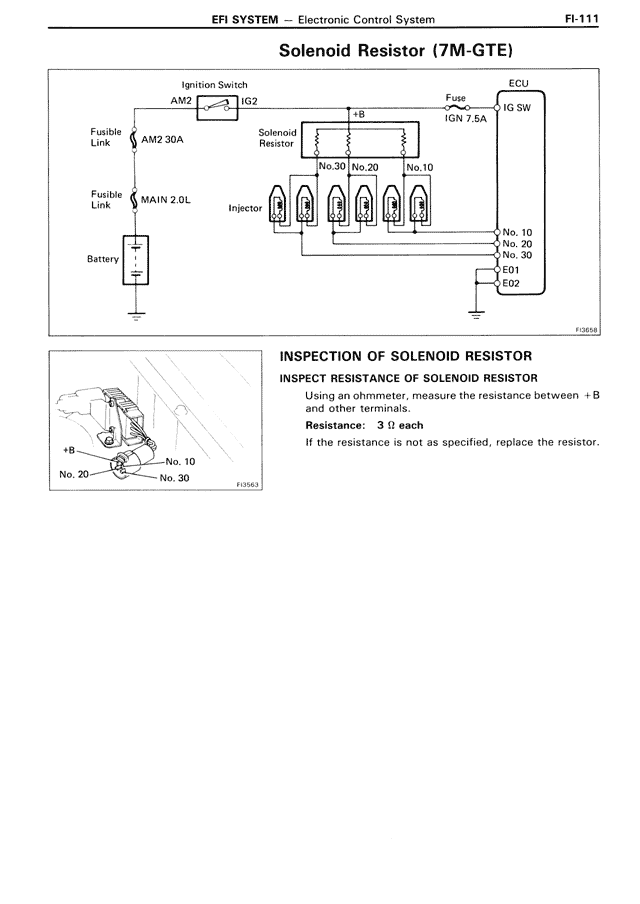

EFI SYSTEM — Electronic Control System FI-111
Solenoid Resistor (7M-GTE)
[DIAGRAM showing circuit with Ignition Switch, AM2, IG2, Fusible Link AM2 30A, Fusible Link MAIN 2.0L, Battery, Solenoid Resistor (No.30, No.20, No.10), Injector (6 injectors shown), ECU, IG SW IGN 7.5A Fuse, No. 10, No. 20, No. 30, E01, E02]
FJ0458
INSPECTION OF SOLENOID RESISTOR
INSPECT RESISTANCE OF SOLENOID RESISTOR
Using an ohmmeter, measure the resistance between +B and other terminals.
Resistance: 3 Ω each
If the resistance is not as specified, replace the resistor.
[DIAGRAM showing physical solenoid resistor component with terminals labeled +B, No. 20, No. 10, No. 30]
FJ0463
