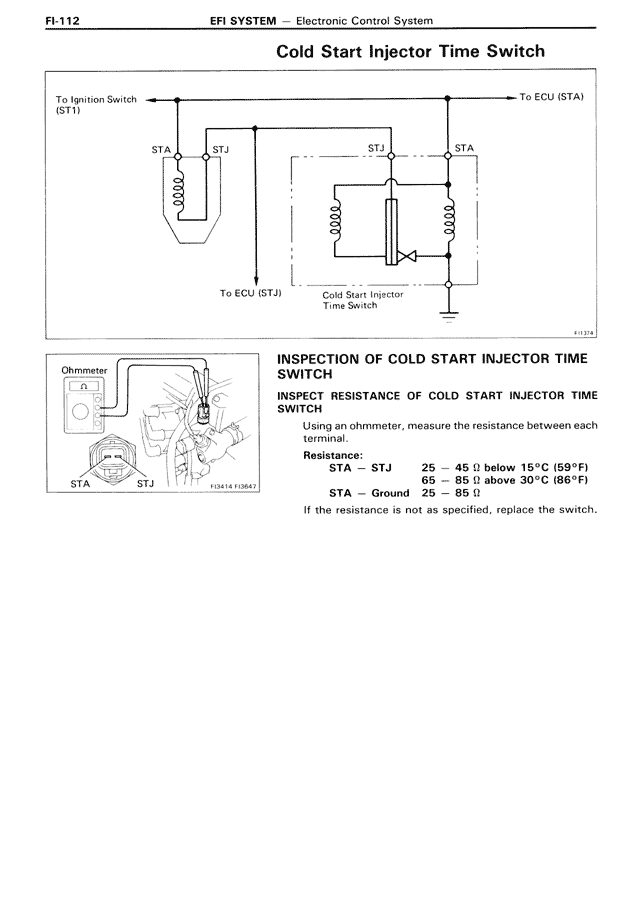

FI-112 EFI SYSTEM — Electronic Control System
Cold Start Injector Time Switch
To Ignition Switch
(ST1)
To ECU (STA)
STA STJ STJ STA
To ECU (STJ)
Cold Start Injector
Time Switch
F03124
Ohmmeter
STA STJ
F03814T03A1
INSPECTION OF COLD START INJECTOR TIME SWITCH
INSPECT RESISTANCE OF COLD START INJECTOR TIME SWITCH
Using an ohmmeter, measure the resistance between each terminal.
Resistance:
STA — STJ 25 — 45 Ω below 15°C (59°F)
65 — 85 Ω above 30°C (86°F)
STA — Ground 25 — 85 Ω
If the resistance is not as specified, replace the switch.
