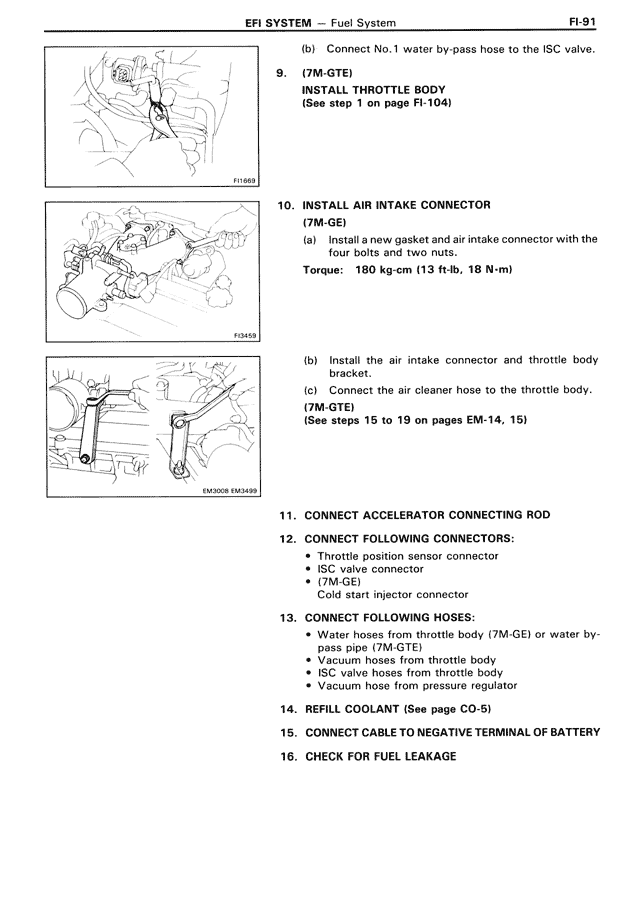

EFI SYSTEM — Fuel System
FI-91
(b) Connect No.1 water by-pass hose to the ISC valve.
9. (7M-GTE)
INSTALL THROTTLE BODY
(See step 1 on page FI-104)
10. INSTALL AIR INTAKE CONNECTOR
(7M-GE)
(a) Install a new gasket and air intake connector with the four bolts and two nuts.
Torque: 180 kg·cm (13 ft·lb, 18 N·m)
(b) Install the air intake connector and throttle body bracket.
(c) Connect the air cleaner hose to the throttle body.
(7M-GTE)
(See steps 15 to 19 on pages EM-14, 15)
11. CONNECT ACCELERATOR CONNECTING ROD
12. CONNECT FOLLOWING CONNECTORS:
• Throttle position sensor connector
• ISC valve connector
• (7M-GE)
Cold start injector connector
13. CONNECT FOLLOWING HOSES:
• Water hoses from throttle body (7M-GE) or water by-pass pipe (7M-GTE)
• Vacuum hoses from throttle body
• ISC valve hoses from throttle body
• Vacuum hose from pressure regulator
14. REFILL COOLANT (See page CO-5)
15. CONNECT CABLE TO NEGATIVE TERMINAL OF BATTERY
16. CHECK FOR FUEL LEAKAGE
