FI-92
EFI SYSTEM — Fuel System

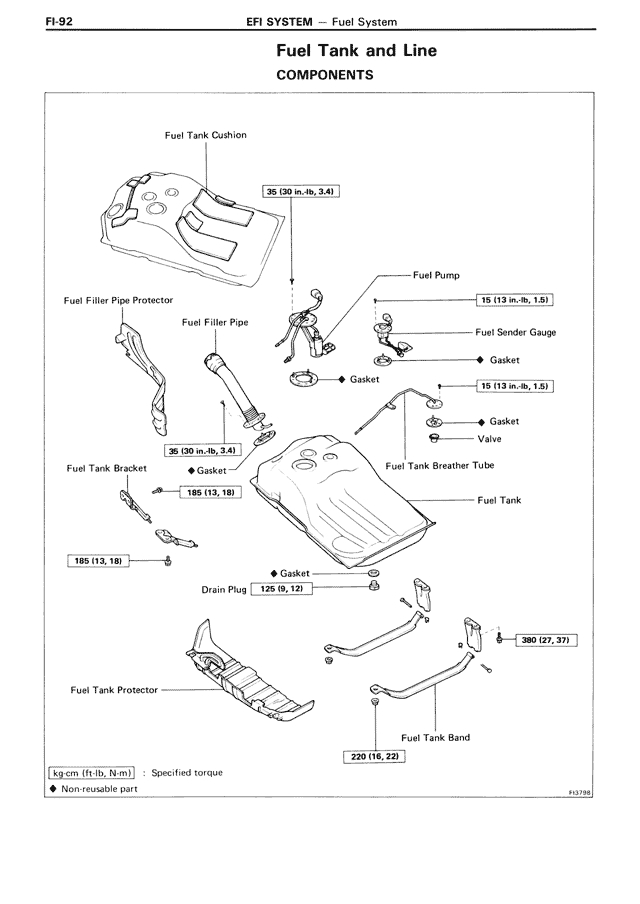

Fuel Tank and Line
COMPONENTS
Fuel Tank Cushion
35 (30 in.-lb, 3.4)
Fuel Pump
15 (13 in.-lb, 1.5)
Fuel Sender Gauge
◆ Gasket
15 (13 in.-lb, 1.5)
◆ Gasket
◆ Valve
Fuel Filler Pipe Protector
Fuel Filler Pipe
36 (30 in.-lb, 3.4)
◆ Gasket
Fuel Tank Breather Tube
Fuel Tank
Fuel Tank Bracket
185 (13, 18)
185 (13, 18)
◆ Gasket
Drain Plug
125 (9, 12)
380 (27, 37)
Fuel Tank Protector
Fuel Tank Band
220 (16, 22)
kg·cm (ft·lb, N·m) : Specified torque
◆ Non-reusable part
343788
