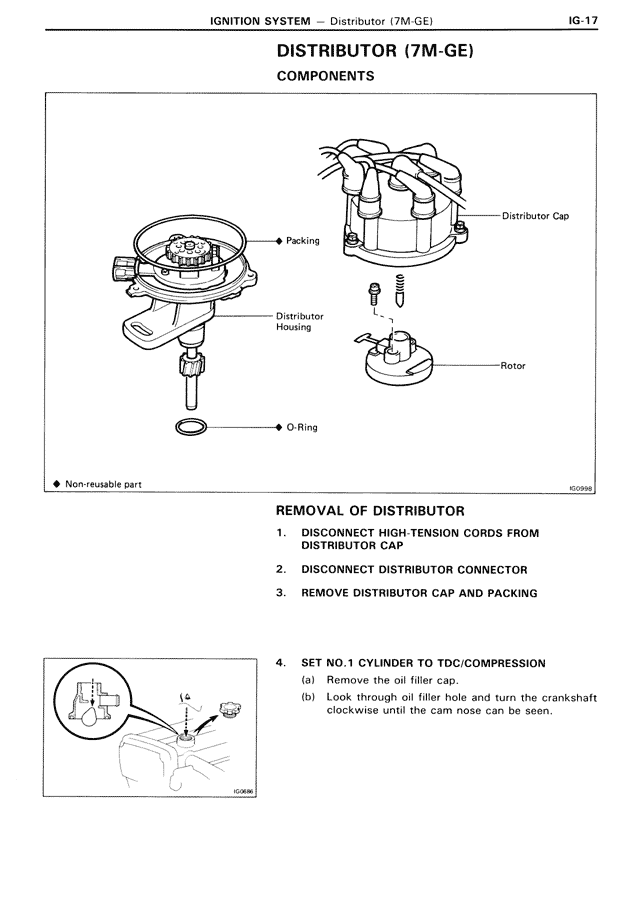

IGNITION SYSTEM — Distributor (7M-GE)                                    IG-17

DISTRIBUTOR (7M-GE)
COMPONENTS

[Component diagram labels:]
Distributor Cap
Packing
Distributor Housing
Rotor
O Ring

♦ Non-reusable part                                                      IG0983

REMOVAL OF DISTRIBUTOR

1.  DISCONNECT HIGH-TENSION CORDS FROM
    DISTRIBUTOR CAP

2.  DISCONNECT DISTRIBUTOR CONNECTOR

3.  REMOVE DISTRIBUTOR CAP AND PACKING

4.  SET NO.1 CYLINDER TO TDC/COMPRESSION
    (a) Remove the oil filler cap.
    (b) Look through oil filler hole and turn the crankshaft
        clockwise until the cam nose can be seen.

                                                                          IG0986
