IGNITION SYSTEM — Distributor (7M-GE) — MK3 Supra Ignition System, page 18
100%

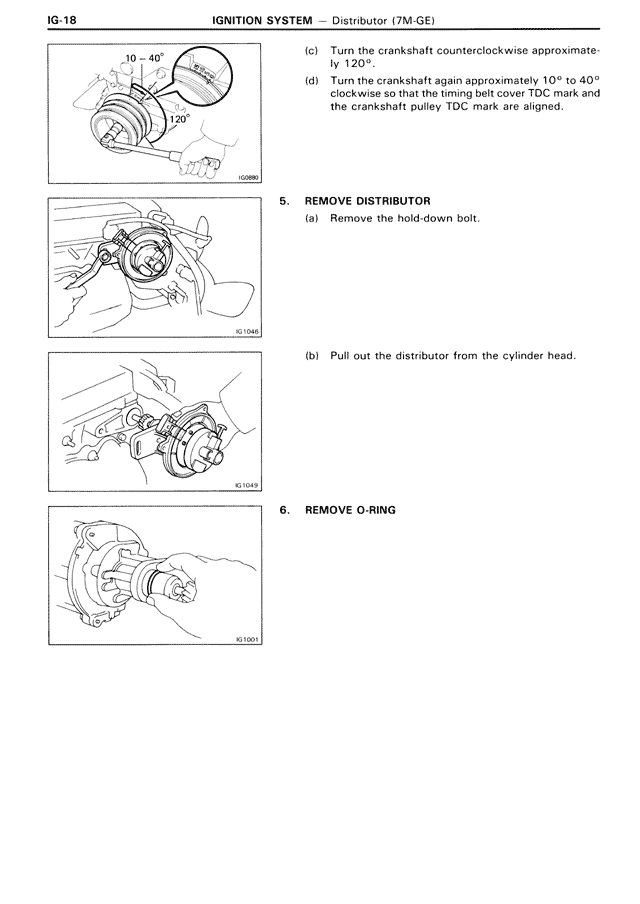

IG-18 IGNITION SYSTEM — Distributor (7M-GE) (c) Turn the crankshaft counterclockwise approximate- ly 120°. (d) Turn the crankshaft again approximately 10° to 40° clockwise so that the timing belt cover TDC mark and the crankshaft pulley TDC mark are aligned. 5. REMOVE DISTRIBUTOR (a) Remove the hold-down bolt. (b) Pull out the distributor from the cylinder head. 6. REMOVE O-RING
