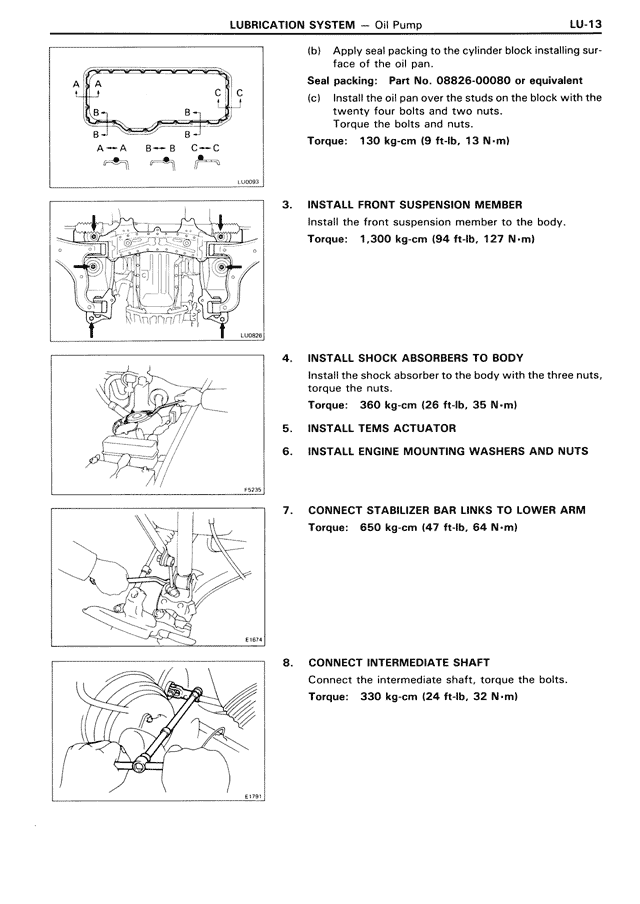

LUBRICATION SYSTEM — Oil Pump — MK3 Supra Lubrication System, page 13
100%
LUBRICATION SYSTEM — Oil Pump LU-13 (b) Apply seal packing to the cylinder block installing surface of the oil pan. Seal packing: Part No. 08826-00080 or equivalent (c) Install the oil pan over the studs on the block with the twenty four bolts and two nuts. Torque the bolts and nuts. Torque: 130 kg-cm (9 ft-lb, 13 N·m) 3. INSTALL FRONT SUSPENSION MEMBER Install the front suspension member to the body. Torque: 1,300 kg-cm (94 ft-lb, 127 N·m) 4. INSTALL SHOCK ABSORBERS TO BODY Install the shock absorber to the body with the three nuts, torque the nuts. Torque: 360 kg-cm (26 ft-lb, 35 N·m) 5. INSTALL TEMS ACTUATOR 6. INSTALL ENGINE MOUNTING WASHERS AND NUTS 7. CONNECT STABILIZER BAR LINKS TO LOWER ARM Torque: 650 kg-cm (47 ft-lb, 64 N·m) 8. CONNECT INTERMEDIATE SHAFT Connect the intermediate shaft, torque the bolts. Torque: 330 kg-cm (24 ft-lb, 32 N·m)
