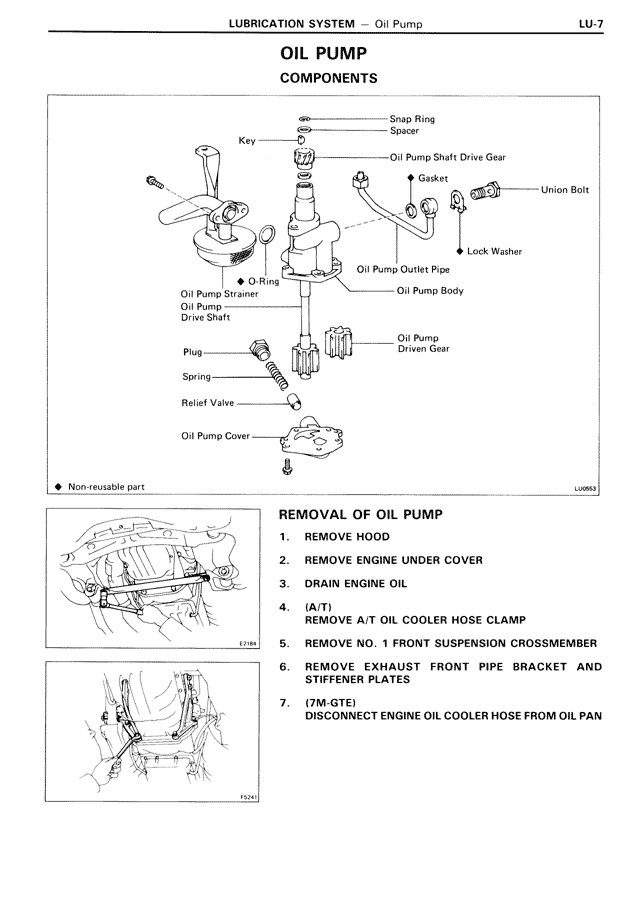

LUBRICATION SYSTEM — Oil Pump
OIL PUMP
COMPONENTS
Snap Ring
Spacer
Key
Oil Pump Shaft Drive Gear
Gasket
Union Bolt
Oil Pump Outlet Pipe
Lock Washer
O Ring
Oil Pump Strainer
Oil Pump Body
Oil Pump
Drive Shaft
Oil Pump
Driven Gear
Plug
Spring
Relief Valve
Oil Pump Cover
♦ Non-reusable part
LU0963
REMOVAL OF OIL PUMP
1. REMOVE HOOD
2. REMOVE ENGINE UNDER COVER
3. DRAIN ENGINE OIL
4. (A/T)
REMOVE A/T OIL COOLER HOSE CLAMP
5. REMOVE NO. 1 FRONT SUSPENSION CROSSMEMBER
6. REMOVE EXHAUST FRONT PIPE BRACKET AND
STIFFENER PLATES
7. (7M-GTE)
DISCONNECT ENGINE OIL COOLER HOSE FROM OIL PAN
E1085
F62EJ
