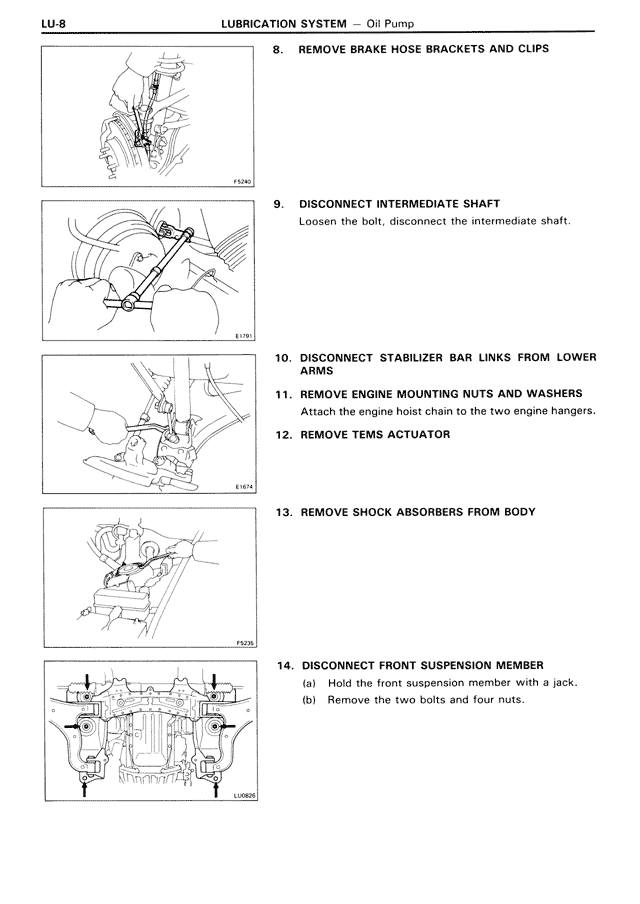

LUBRICATION SYSTEM — Oil Pump — MK3 Supra Lubrication System, page 8
100%
LU-8 LUBRICATION SYSTEM — Oil Pump 8. REMOVE BRAKE HOSE BRACKETS AND CLIPS 9. DISCONNECT INTERMEDIATE SHAFT Loosen the bolt, disconnect the intermediate shaft. 10. DISCONNECT STABILIZER BAR LINKS FROM LOWER ARMS 11. REMOVE ENGINE MOUNTING NUTS AND WASHERS Attach the engine hoist chain to the two engine hangers. 12. REMOVE TEMS ACTUATOR 13. REMOVE SHOCK ABSORBERS FROM BODY 14. DISCONNECT FRONT SUSPENSION MEMBER (a) Hold the front suspension member with a jack. (b) Remove the two bolts and four nuts.
