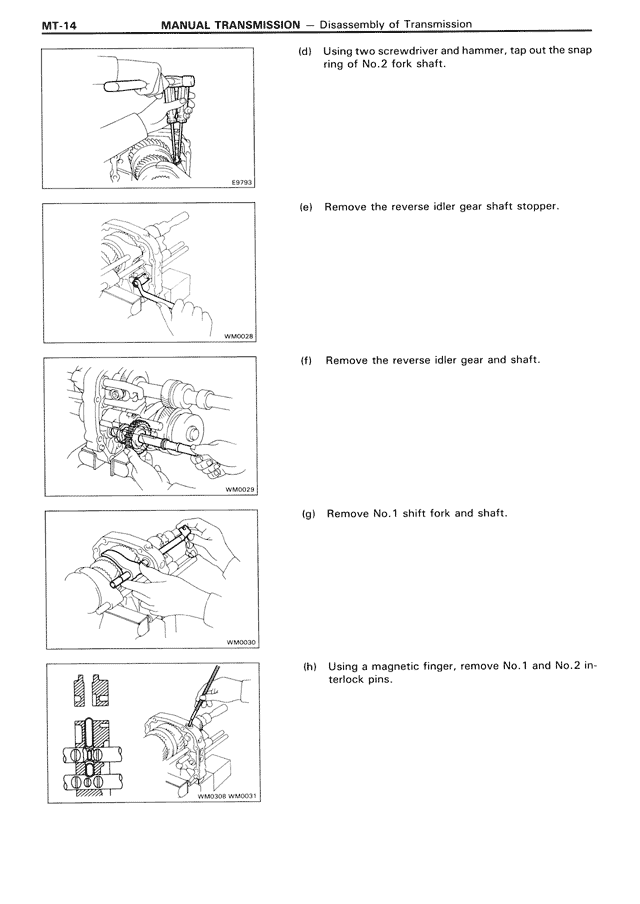

MT-14 MANUAL TRANSMISSION — Disassembly of Transmission (d) Using two screwdriver and hammer, tap out the snap ring of No.2 fork shaft. E5793 (e) Remove the reverse idler gear shaft stopper. WM0038 (f) Remove the reverse idler gear and shaft. WM0023 (g) Remove No.1 shift fork and shaft. WM0030 (h) Using a magnetic finger, remove No.1 and No.2 interlock pins. E5795 WM0031
