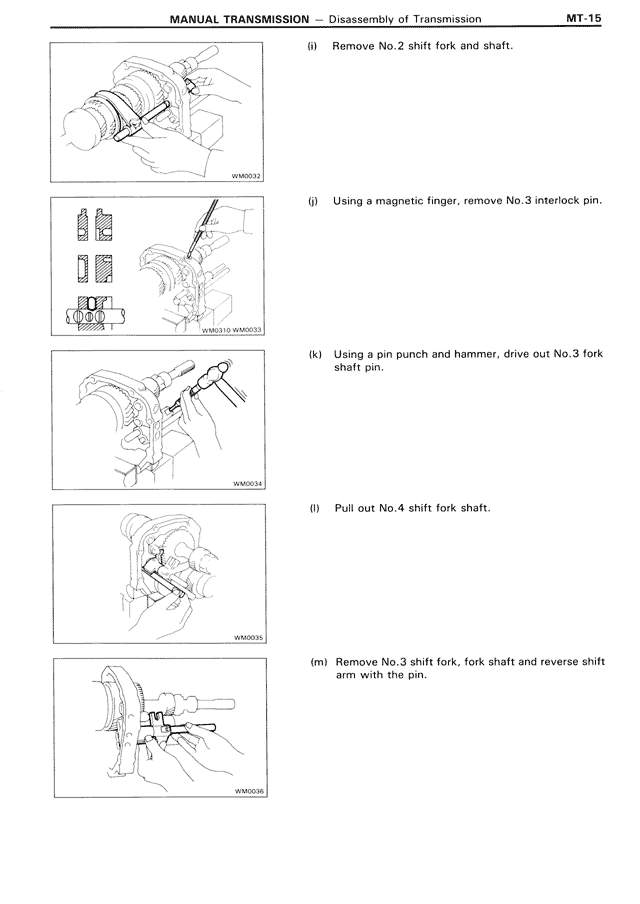

MANUAL TRANSMISSION — Disassembly of Transmission — MK3 Supra Manual Transmission, page 15
100%
MANUAL TRANSMISSION — Disassembly of Transmission MT-15 (i) Remove No.2 shift fork and shaft. (j) Using a magnetic finger, remove No.3 interlock pin. (k) Using a pin punch and hammer, drive out No.3 fork shaft pin. (l) Pull out No.4 shift fork shaft. (m) Remove No.3 shift fork, fork shaft and reverse shift arm with the pin.
