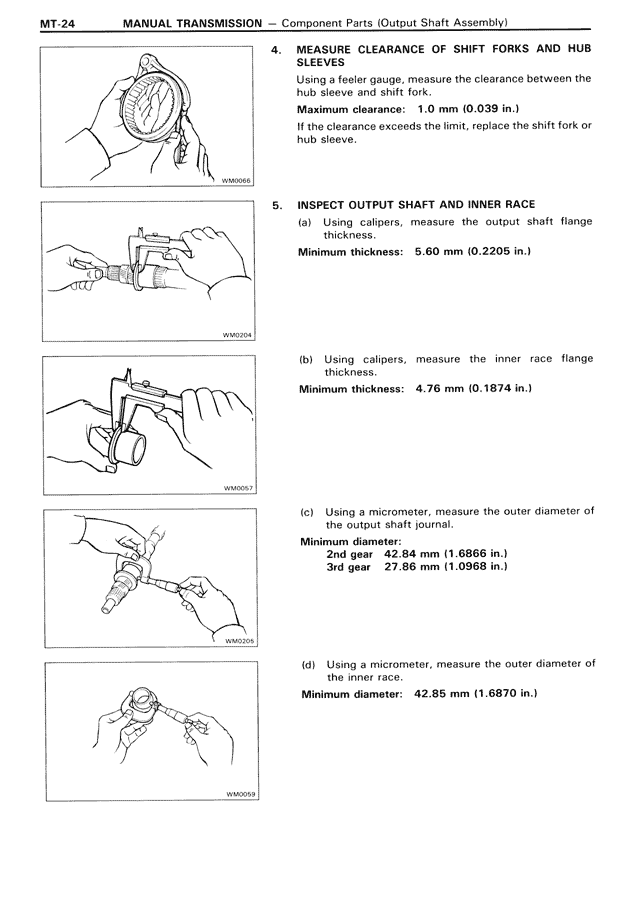

MT-24 MANUAL TRANSMISSION — Component Parts (Output Shaft Assembly) 4. MEASURE CLEARANCE OF SHIFT FORKS AND HUB SLEEVES Using a feeler gauge, measure the clearance between the hub sleeve and shift fork. Maximum clearance: 1.0 mm (0.039 in.) If the clearance exceeds the limit, replace the shift fork or hub sleeve. 5. INSPECT OUTPUT SHAFT AND INNER RACE (a) Using calipers, measure the output shaft flange thickness. Minimum thickness: 5.60 mm (0.2205 in.) (b) Using calipers, measure the inner race flange thickness. Minimum thickness: 4.76 mm (0.1874 in.) (c) Using a micrometer, measure the outer diameter of the output shaft journal. Minimum diameter: 2nd gear 42.84 mm (1.6866 in.) 3rd gear 27.86 mm (1.0968 in.) (d) Using a micrometer, measure the outer diameter of the inner race. Minimum diameter: 42.85 mm (1.6870 in.)
