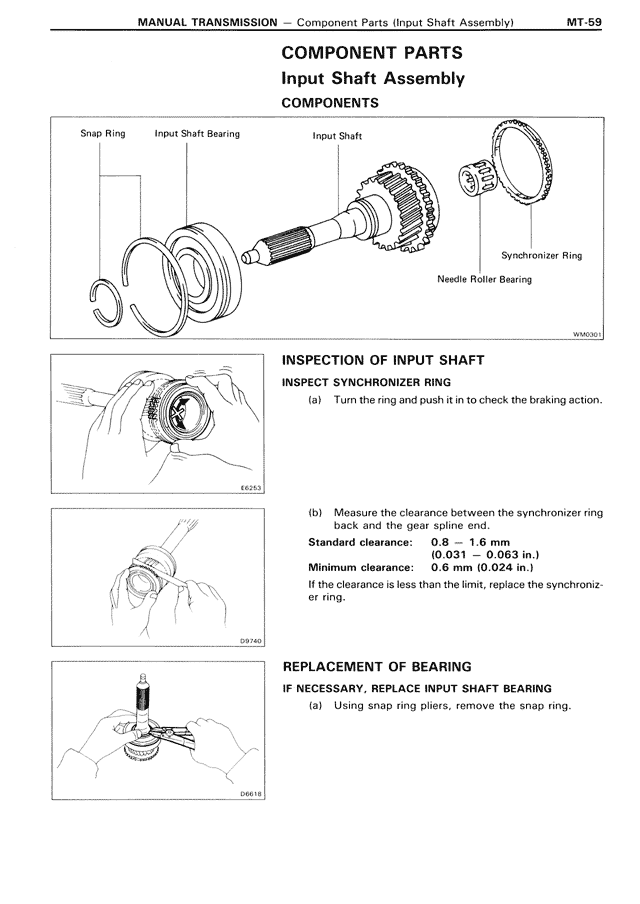

COMPONENT PARTS
Input Shaft Assembly
COMPONENTS
Snap Ring
Input Shaft Bearing
Input Shaft
Synchronizer Ring
Needle Roller Bearing
INSPECTION OF INPUT SHAFT
INSPECT SYNCHRONIZER RING
(a) Turn the ring and push it in to check the braking action.
(b) Measure the clearance between the synchronizer ring back and the gear spline end.
Standard clearance: 0.8 — 1.6 mm (0.031 — 0.063 in.)
Minimum clearance: 0.6 mm (0.024 in.)
If the clearance is less than the limit, replace the synchronizer ring.
REPLACEMENT OF BEARING
IF NECESSARY, REPLACE INPUT SHAFT BEARING
(a) Using snap ring pliers, remove the snap ring.
