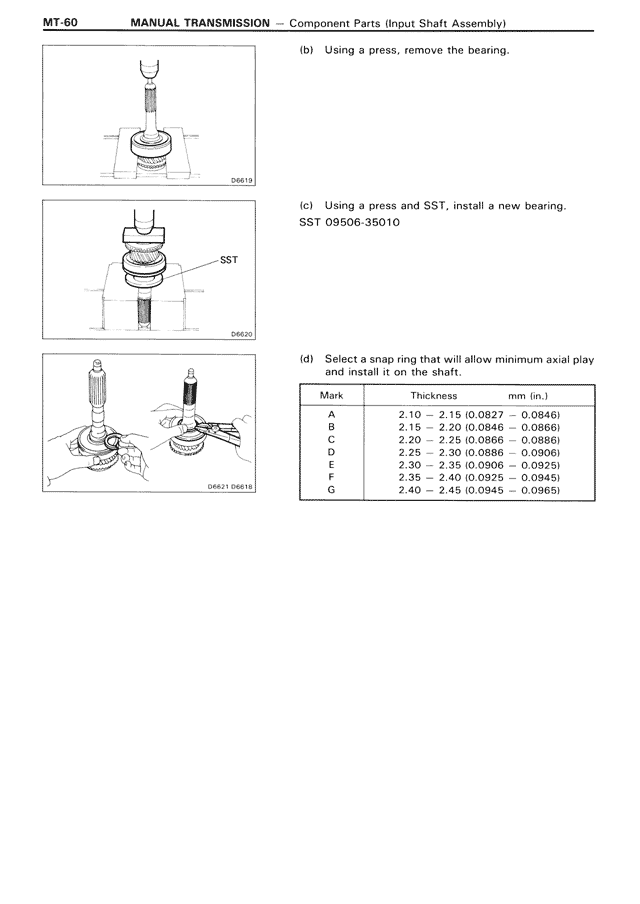

MT-60
MANUAL TRANSMISSION — Component Parts (Input Shaft Assembly)
(b) Using a press, remove the bearing.
D6613
(c) Using a press and SST, install a new bearing.
SST 09506-35010
SST
D6620
(d) Select a snap ring that will allow minimum axial play and install it on the shaft.
D6621 D6618
Mark Thickness mm (in.)
A 2.10 — 2.15 (0.0827 — 0.0846)
B 2.15 — 2.20 (0.0846 — 0.0866)
C 2.20 — 2.25 (0.0866 — 0.0886)
D 2.25 — 2.30 (0.0886 — 0.0906)
E 2.30 — 2.35 (0.0906 — 0.0925)
F 2.35 — 2.40 (0.0925 — 0.0945)
G 2.40 — 2.45 (0.0945 — 0.0965)
