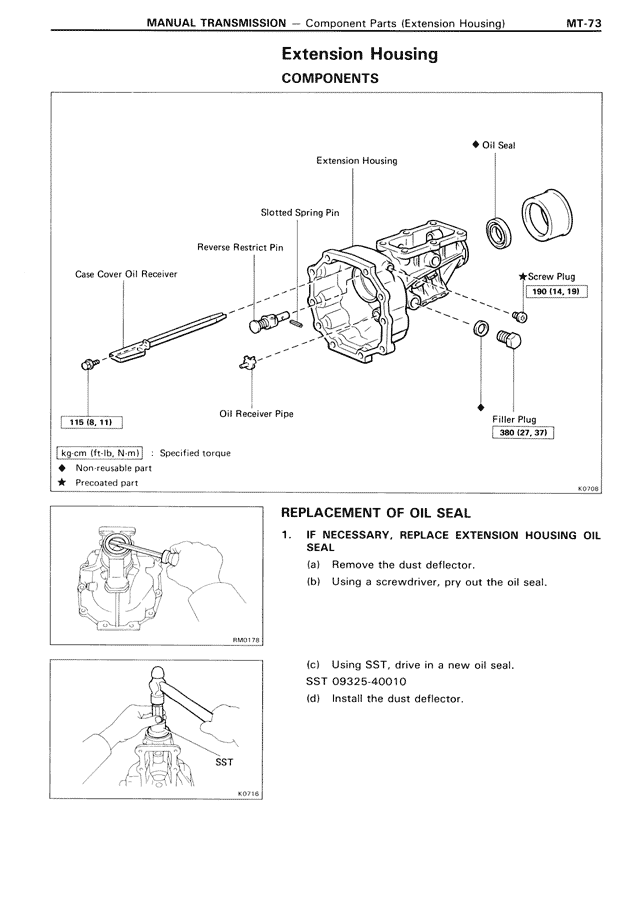

Extension Housing
COMPONENTS
◆ Oil Seal
Extension Housing
Slotted Spring Pin
Reverse Restrict Pin
Case Cover Oil Receiver
★Screw Plug
190 (14, 18)
Oil Receiver Pipe
Filler Plug
380 (27, 37)
135 (9, 11)
kg·cm (ft·lb, N·m) : Specified torque
◆ Non-reusable part
★ Precoated part
KJ0708
REPLACEMENT OF OIL SEAL
1. IF NECESSARY, REPLACE EXTENSION HOUSING OIL
SEAL.
(a) Remove the dust deflector.
(b) Using a screwdriver, pry out the oil seal.
RM0176
(c) Using SST, drive in a new oil seal.
SST 09325-40010
(d) Install the dust deflector.
SST
KJ0716
