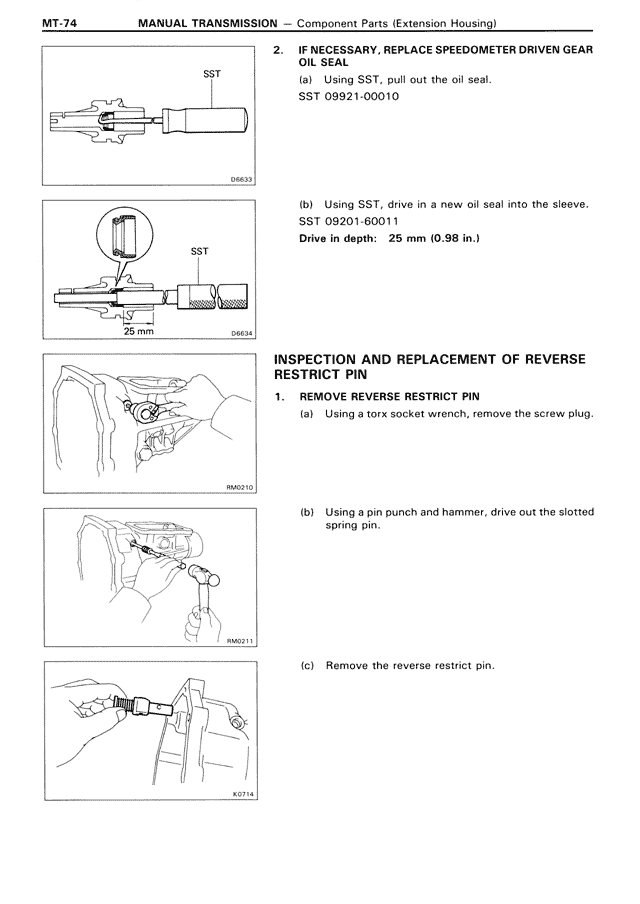

MT-74
MANUAL TRANSMISSION — Component Parts (Extension Housing)
2. IF NECESSARY, REPLACE SPEEDOMETER DRIVEN GEAR OIL SEAL
(a) Using SST, pull out the oil seal.
SST 09921-00010
(b) Using SST, drive in a new oil seal into the sleeve.
SST 09201-60011
Drive in depth: 25 mm (0.98 in.)
INSPECTION AND REPLACEMENT OF REVERSE RESTRICT PIN
1. REMOVE REVERSE RESTRICT PIN
(a) Using a torx socket wrench, remove the screw plug.
(b) Using a pin punch and hammer, drive out the slotted spring pin.
(c) Remove the reverse restrict pin.
